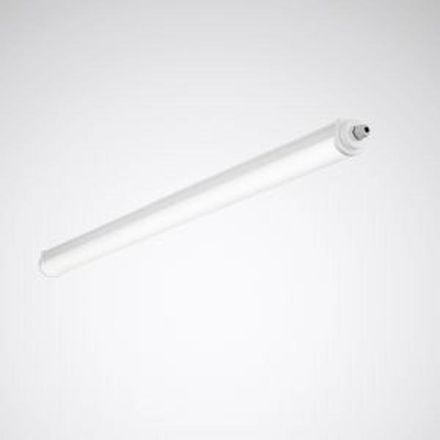

Trilux 7756640 2315 G3 1200 38/26/ML-840 ET PC +LV LED waterproof luminaire

Surface-mounted luminaire for damp rooms and covered outdoor areas. With through-wiring 3 x 1.5 mm2. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies (DIN 10500). For ceiling, wall and suspended mounting. Wall mounting can be horizontal or vertical. Theft-proof mounting possible using an anti-theft device that must be ordered separately. Mounting clips and triangle brackets for suspended mounting included in delivery. With opal PC cover. Luminaire luminous flux adjustable in 2 stages. Rated luminous flux 3800 lm - 2600 lm, rated power 32.00 W - 22.00 W, luminous efficacy 118 lm/W - 118 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 80. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Profile upper part made of extruded polycarbonate. PC end caps with UV protection. (RAL 9016). Profile lower part made of opal extruded polycarbonate. Dimensions (L x W): 1270 mm x 65 mm, luminaire height 65 mm. Permissible ambient temperature (ta): -20 °C - +30 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP65, shock resistance level according to IEC 62262: IK08, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 1.6 kg. Cable entry with easy-to-install bayonet screw cap to seal the connection space. The luminaire is connected using a plug-in terminal. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE mark. In addition, the luminaire is ENEC-certified by an independent testing body.
