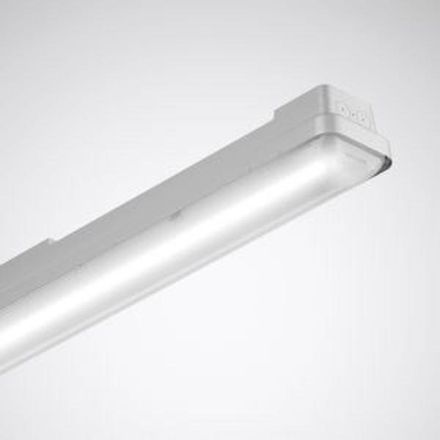

Trilux 7925851 OleveonF 15 L 4000-840 ETDD +DMR LED waterproof luminaire

LED damp-proof surface-mounted luminaire IP 66. Advantageous where there are increased requirements for mechanical stability. Suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies (DIN 10500). With clipless locking technology for easy installation of the diffuser cover and luminaire body in accordance with the protection class after connection. For ceiling, wall and suspended installation. Ceiling mounting using the enclosed stainless steel fastening clip. Suspended mounting possible using optional accessories. Cover made of opal, translucent PMMA with an internal prism structure. With Lambertian light intensity distribution. Glare rating according to UGR classification (EN 12464-1) < 25. Rated luminous flux 4000 lm, rated power 28.00 W, luminaire luminous efficacy 142 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra> 80. Color tolerance (initial MacAdam) 3 SDCM, the light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of PC. Luminaire body color light gray (RAL 7035). With clipless locking technology for easy installation of the diffuser cover and luminaire body in accordance with the protection class after connection. Dimensions (L x W): 1552 mm x 102 mm, luminaire height 91 mm. Permissible ambient temperature (ta): -20 °C - +35 °C. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 2.6 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). The luminaire is suitable for operation on a 230V direct current network (DC). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. LiveLink SwarmSens slave luminaire with integrated Bluetooth module for networking with a LiveLink SwarmSens master luminaire. Group assignment is done via DIP switch (64 groups) or smartphone app (255 groups) The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking.
