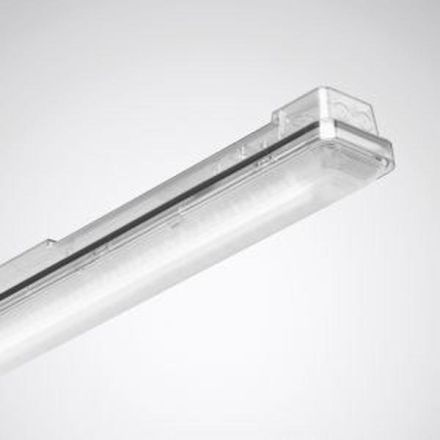

Trilux 7928351 AragF 15 PXW 64-840 ETDD +DMM PC LED waterproof luminaire

LED damp-proof luminaire IP 66 for use in applications with high demands on variability, efficiency, light quality and technology. The luminaire is part of a range with identical, installation-compatible variants. These variants are available with alternative optical systems, light engines with adjustable luminous fluxes and with connection options to light management and emergency lighting systems. Suitable for use in HACCP, IFS Version 6 and/or BRC Global Standard Food Version 7 certified companies (DIN 10500). Luminaire with limited surface temperature in accordance with DIN EN 60598-2-24 suitable for use in fire-hazardous premises (D identification). With clipless locking technology for easy installation of the diffuser cover and luminaire body in accordance with the protection class after connection. Suspended installation possible using optional accessories. Ceiling mounting using the enclosed stainless steel mounting bracket. Suspended installation possible using optional accessories. With a prismatic, photometrically effective, translucent PC cover, direct beam. With extremely wide beam light distribution. Direct beam with decorative indirect component. Distribution of the luminaire luminous flux indirect/direct component 85% / 15%. Rated luminous flux 6300 lm, rated power 45.00 W, general color rendering index (CRI) Ra > 80. Color location tolerance (initial MacAdam) 3 SDCM, average rated service life L80 (tq 25 °C) = 70,000 h, average rated service life L80 (tq 35 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Colorless luminaire body made of translucent, shatter-proof polycarbonate. Luminaire body color light gray (RAL 7035). Dimensions (L x W): 1552 mm x 102 mm, luminaire height 91 mm. Permissible ambient temperature (ta): - +. Protection class (EN 61140): I, protection type (DIN EN 60529): IP66, shock resistance level according to IEC 62262: IK08, test temperature glow wire test according to IEC 60695-2-11: 850 °C. Weight: 2.8 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). The luminaire is suitable for operation on a 230 V direct current network (DC). The luminaire can be equipped with the Monitoring ready (MOR) functionality on request. LiveLink SwarmSens master light with integrated HF sensor for motion detection in combination with a brightness sensor for daylight detection and Bluetooth module for networking up to 4096 LiveLink SwarmSens master and slave lights in a mesh network. Commissioning is carried out either with DIP switches and rotary potentiometers on the sensor or via the LiveLink SwarmSens smartphone app. Range of the Bluetooth® signal up to 15 m. Integrated HF sensor in the 24 GHz frequency range for detecting movements at speeds between 1 and 25 km/h, adjustable in 10 steps from 30 seconds to 60 minutes. Detection range max. 10 m in diameter with a maximum installation height of 5 m. Brightness sensor for daylight detection adjustable in 9 brightness levels as a threshold switch or permanently deactivated. Basic light function when absent with 10% residual lighting via DIP switch or freely selectable via app. The lights are assigned to groups via DIP switch (64 groups) or smartphone app (255 groups). Configuration of a swarm function of the existing lighting groups for a leading light via the app. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking.
