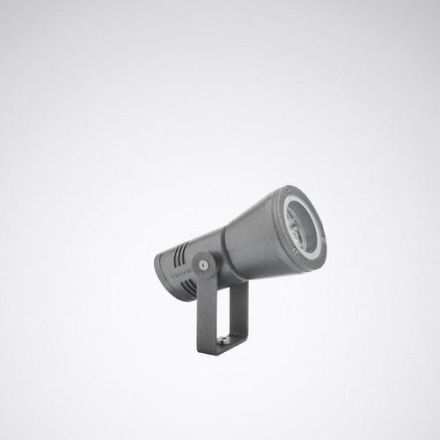

Trilux 6329540 Faciella 08 RM1L/500-830 1G1 ET LED spotlight

Trilux 6329540 Faciella 08 RM1L/500-830 1G1 ET LED spotlight

In stock

SKU: 948529

Price on request

€336.09

€0

Overview

Compact spotlight for accent lighting. The luminaire is part of a series with variants that cover different lighting requirements with the same luminaire design. For direct installation on a solid surface. With ground spike (accessory) suitable for fastening in the ground. Mast fastening using a stainless steel mast clamp (accessory). Clamping range 40-130 mm. With rotationally symmetrical, medium-wide light distribution. Maximum light intensity at beam angle 2 x 15°. Beam angle 30°. With LED lens system. Number of LEDs: 3. Rated luminous flux 500 lm, rated power 6.00 W, luminaire luminous efficacy 83 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color tolerance (initial MacAdam) 4 SDCM. Other LED light colors available on request. Average rated service life L80(tq 35 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Spotlight housing made of die-cast aluminum. Color of the lamp body: anthracite, similar to DB 703 with metallic effect, powder-coated, highly weather-resistant. (DB 703). The lamp body can be made in the following colors on request at no extra cost: Black textured (Akzo Nobel 8118669, similar to RAL 9005), white textured (Akzo Nobel 8158870, similar to RAL 9016), gray textured (Akzo Nobel 8129595, similar to RAL 9006). Other color variants according to RAL or DB color code are available on request for an additional charge. Rotatable and pivotable, pivot range 195°, pivot range 360°. With flat cover panel, extra clear, 4 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP65, shock resistance level according to IEC 62262: IK06. Weight: 1.1 kg. Equipped with 5000 mm connection cable at the factory. Cable glands for connection cable Pg9, 5.5 mm - 10 mm. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The

Property	Value
System power:	6 W
Rated luminous flux:	500 lm
Housing color:	anthracite
Housing material:	aluminum
Protection class (IP):	IP65
Outer diameter:	80 mm
Socket:	other
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	160 mm
With motion detector:	no
Suitable for wall mounting:	yes
Color temperature:	3000 K
Nominal voltage:	230 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	electronic transformer
Beam angle:	medium beam 21-40°
Impact resistance:	IK06
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Reflector:	other
Suitable for number of light sources:	1
Luminous flux:	500 lm
Cover material:	transparent glass
Covering of the lamp with thermal insulation material possible:	yes
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for podium/floor mounting:	yes
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface protection:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Focus lens
Light output:	direct
Total harmonic distortion (THD):	10
Protection class (NEMA):	other
Rated ambient temperature according to IEC 62722-2-1:	25 °C
Luminous intensity:	1932 cd
Wiring type:	Termination
Power factor:	0.9
Number of poles:	3
Connection type:	other
Luminaire luminous efficacy:	83 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	850 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG2
Color consistency (McAdam ellipse):	SDCM4
Replaceable operating device:	yes
Dimming DALI-2:	no
Luminous flux maintenance at average usage time of 35,000 h at 25 °C ambient temp.:	14 %
Luminous flux maintenance at average usage time of 35,000 h at 25 °C ambient temp. Service life 50,000 h at 25 °C ambient temp.:	20 %
Flicker value Pst LM:	0.3
Luminous flux adjustable:	no
Beam angle adjustable:	no
Stroboscopic effect value SVM:	0.3
Max. number of luminaires circuit breaker B16:	50
Max. Number of lights circuit breaker C16:	85
Emergency power supply integrated:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no

Characteristics

Total harmonic distortion (THD)10

Stroboscopic effect value SVM0.3

Flicker value Pst LM0.3

Rated luminous flux500 lm

HABFaciella 08 RM1L/500-830 1G1 ET

Manufacturer

HAN6329540

GTIN4018242308682

Covering the luminaire with thermal insulation material possibleYes

Connection typeOther

Type of wiringDiploma

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceYes

Outer diameter80 mm

Rated ambient temperature according to IEC 62722-2-125°C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM4

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for number of light sources1

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingYes

Housing colorAnthracite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Power factor0.9

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy83lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux500lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.20 %

Light intensity1932 cd

Light distributorFocus lens

Light distributionSymmetrical

Length160 mm

Max. number of luminaires Circuit breaker B1650

Max. number of luminaires Circuit breaker C1685

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage230V

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPowder coated

Without dimming functionYes

Photobiological safety according to EN 62471RG2

Number of poles3

ReflectorOther

Impact resistanceIK06

IP protection)IP65

Protection class (NEMA)Other

Protection classI

Voltage typeAC

System performance6W

AdjustabilitySwiveling

Cover materialGlass transparent

Housing materialAluminum
