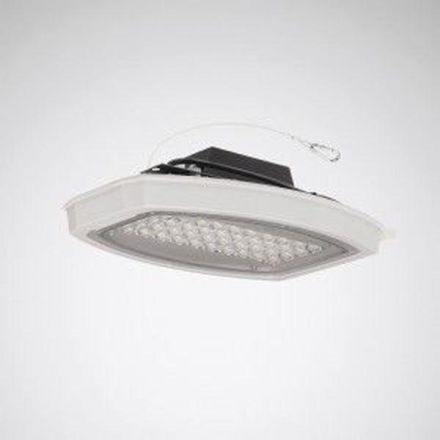

Trilux 7093340 US 9711-AB7L-LR/750/820/910 740 10G1 ET LED conversion kit, grey

LED conversion kit for mast lights 9711... . Light with adjustable rated luminous flux. With power reduction via control phase. Switching off a control phase sets the luminous flux of the light to 50%. For easy and quick conversion of existing older-style lights into efficient LED MLT mast lights. Complete unit with LED system, control gear, optical system with cover and connection components. Tool-free assembly after removing and dismantling the existing components in accordance with the assembly instructions. Optical system designed in multi-lens technology (MLT). Light optics consisting of highly efficient, UV and temperature-resistant lens systems. With asymmetrical wide beam light intensity distribution. For lighting streets according to M5 and M6 lighting classes with a street width to light point height ratio of 0.4 to 0.8. Other beam characteristics are available for flexible adaptation to customer-specific lighting tasks. LED module consisting of a die-cast aluminum housing with integrated LED and optical lens systems. Luminaire with adjustable rated luminous flux. The following information on the luminaire luminous flux and the system connected load refers to the operation of this luminaire with a 3-stage switch at the smallest adjustable value: Rated luminous flux 7500 lm, rated power 57.00 W, luminaire luminous efficacy 131 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra > 70. Color location tolerance (initial MacAdam) 5 SDCM, other LED light colors available on request. Average rated service life LCLO (tq 25 °C) = 100,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Weight: 3.6 kg. With electronic control gear, switchable. Control gear according to DALI-2 standard (EN 62386). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Surge voltage resistance 6 kV. Parameterizable ballast with constant luminous flux (CLO). Connected load at end of service life: 62.00 W. The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing body.
