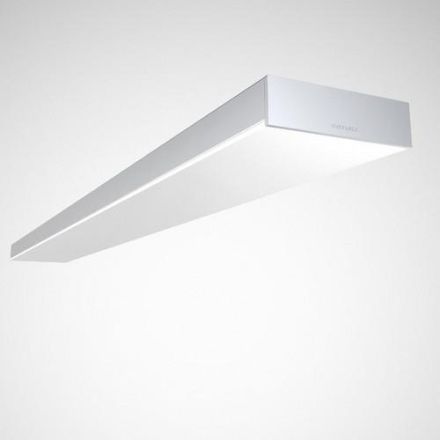

Trilux 7744540 Opendo D1-L PW19 36-830 ET 03 LED ceiling light

Trilux 7744540 Opendo D1-L PW19 36-830 ET 03 LED ceiling light

In stock

SKU: 948585

Price on request

€263.83

€0

Overview

Rectangular LED ceiling surface-mounted luminaire with full-surface, borderless PMMA cover. Surface-mounted luminaire for ceiling mounting indoors. For single or light strip applications using accessories to be ordered separately. Suitable for through-wiring. With an internal microprismatic cover panel and a smooth, opal PMMA cover on the room side. With symmetrical, wide-beam light distribution. Glare rating according to UGR classification (EN 12464-1) < 19. Suitable for screens in accordance with EN 12464-1 due to limited luminance L 3000 cd/m2 for beam angles above 65° all around. Minimum luminaire luminous flux 3400 lm, rated power 28.00 W. Maximum luminaire luminous flux, rated power 0.00 W. Luminaire luminous efficacy 121 lm/W. Light color warm white, correlated color temperature (CCT) 3000 K, general color rendering index (CRI) Ra > 80. Color tolerance (initial MacAdam) 3 SDCM, average rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). Luminaire body made of sheet steel, silver-gray powder-coated (RAL 9006). Dimensions (L x W): 1127 mm x 160 mm, luminaire height 48 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK03, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 4.0 kg. With electronic control gear, switchable. The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the product safety law and bears the CE marking.

>no

Property	Value
Max. System power:	28 W
Rated luminous flux according to IEC 62722-2-1:	3400 lm
Suitable for number of lamps:	1
Length:	1127 mm
Width:	160 mm
Height/depth:	48 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	Silver
Housing material:	Steel
Color temperature:	3000 K
Impact resistance:	IK02
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	no
Energy efficiency class of the built-in light source:	other
Voltage type:	AC
With motion detector:	no
Beam angle:	wide beam 41-80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	transparent plastic
Light distributor:	other
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	yes
Suitable for Pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the lamp with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on the operating device:	no
Energy efficiency index (EEI) of the power supply:	other
Rated service life L80/B50 at 25 °C:	50000 h
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	121 lm/W
Type of wiring:	suitable for through wiring
Number of poles:	5

Characteristics

Energy efficiency class of the permanently installed light sourceOther

Rated service life L80/B50 at 25 °C50000 h

HABOpendo D1-L PW19 36-830 ET 03

Manufacturer

HAN7744540

GTIN4018242588039

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angleWide beam 41-80°

Rated luminous flux according to IEC 62722-2-13400lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width160 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature3000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationYes

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Suitable for wall mountingNo

Housing colorSilver

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth48 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy121lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorOther

Light distributionSymmetrical

Length1127 mm

Max. system performance28W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Without dimming functionYes

Number of poles5

Impact resistanceIK02

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage typeAC

Cover materialPlastic transparent

Housing materialSteel
