Trilux 8537451 2350 G4 D2 PW19 4000-8MC ETDD LED ceiling light

Trilux 8537451 2350 G4 D2 PW19 4000-8MC ETDD LED ceiling light

In stock

SKU: 1048332

Price on request

€209.09

€0

Overview

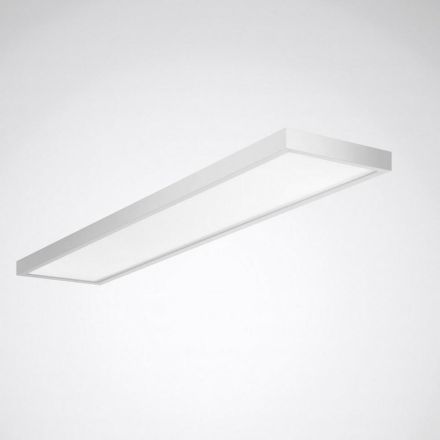

LED ceiling surface-mounted luminaire with translucent PMMA cover panel. For ceiling mounting indoors. Cover panel made of translucent PMMA with photometrically effective prism structure. With symmetrical, limited, wide beam light distribution. Glare rating according to UGR classification (EN 12464-1) <, 19. Luminaire luminous flux and light color fixed. Rated luminous flux 4000 lm - 4000 lm, rated power 36 W - 36 W, maximum luminaire luminous efficacy 111 lm/W. Light color neutral white, correlated color temperature (CCT) 4000 K, general color rendering index (CRI) Ra >, 80. Color location tolerance (initial MacAdam) = 5 SDCM. Average rated service life L65(tq 25 °C) = 50,000 h. Luminaire body made of aluminum. Surface coated white (RAL 9016). Dimensions (L x W): 1225 mm x 325 mm, luminaire height 46 mm. Protection class (EN 61140): I, protection type (DIN EN 60529): IP20, shock resistance level according to IEC 62262: IK02, test temperature glow wire test according to IEC 60695-2-11: 650 °C. Weight: 3.6 kg. With electronic control gear, digitally dimmable (DALI). Control gear according to DALI-2 standard (EN 62386). Luminaire can be switched and dimmed using a touch function via DALI control terminals (Touch DIM). The control gear is replaceable in accordance with the ecodesign requirements (Regulation (EU) 2019/2020). The product meets the basic requirements of the applicable EU directives and the Product Safety Act and bears the CE marking. In addition, the luminaire is ENEC-certified by an independent testing center.

< tr style='background-color:#F0F0F0'> >0.3

Property	Value
Rated luminous flux according to IEC 62722-2-1:	4000 lm
Color temperature:	4000 K
Color rendering index CRI:	80-89
Color consistency (McAdam ellipse):	SDCM4
Protection class (IP):	IP20
Impact resistance:	IK02
Protection class:	I
Rated ambient temperature according to IEC62722-2-1:	25 °C
Length:	1202 mm
Width:	302 mm
Height/depth:	50 mm
Voltage type:	AC
Nominal voltage:	220 - 240 V
Max. System power:	36 W
Luminaire luminous efficacy:	111 lm/W
Power factor:	0.95
With control gear:	yes
Control gear:	electronic Transformer
Dimming DALI:	yes
Dimming DALI-2:	yes
Dimming Touch and Dim:	yes
Connection type:	Plug-in terminal
Number of poles:	5
With light source:	yes
Light source:	LED not replaceable
Light emission:	direct
Light distribution:	symmetrical
Light distributor:	other
Housing color:	white
Housing material:	aluminum
Cover material:	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for surface mounting:	yes
Suitable for ceiling mounting:	yes
Total harmonic distortion (THD):	14
Photobiological safety according to EN 62471:	RG0
Flicker value Pst LM:
Strobe effect value SVM:	0.3
Weight:	4.39
Weight unit:	KG
Socket:	other
Conductor cross-section:	1.5 mm²
Design of the grid:	without
Covering of the lamp with thermal insulation material possible:	yes
Suitable for number of lamps:	1
Suitable for computer workstations in accordance with EN 12464-1:	yes
Light color:	white
Dimming with push button:	yes
Max. number of lights with circuit breaker C16:	20
Max. Number of lights circuit breaker B16:	12
Adjustable luminous flux:	Levels
Replaceable operating device:	yes
Surface protection housing:	powder-coated
Brief description:	Surface-mounted lights 2350 MultiLumen 2 prisms white ETDD 36W 4000lm Wide reduced glare UGR19 (W19) IK02 4 SDCM

Characteristics

Total harmonic distortion (THD)14

Stroboscopic effect value SVM0.3

Flicker value Pst LM0.3

HAB2350 G4 D2 PW19 4000-8MC ETDD

Manufacturer

HAN8537451

GTIN4018242966691

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Execution of the gridWithout

Replaceable operating deviceYes

Rated luminous flux according to IEC 62722-2-14000lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceElectronic transformer

Suitable for computer workstations according to EN 12464-1Yes

Width302 mm

Dimming DALIYes

Dimming DALI-2Yes

Dimming Touch and DimYes

Dimming with push buttonYes

Color consistency (McAdam ellipse)SDCM4

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for number of lamps1

Housing colorWhite

Weight4,39

Weight unit kg

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth50 mm

Short descriptionSurface mounted luminaires 2350 MultiLumen 2 prisms white ETDD 36W 4000lm Wide reduced glare UGR19 (W19) IK02 4 SDCM

Power factor0.95

Conductor cross-section1.5 mm²

Luminaire luminous efficacy111lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux adjustableStages

Light distributorOther

Light distributionSymmetrical

Length1202 mm

Max. number of luminaires Circuit breaker B1612

Max. number of luminaires Circuit breaker C1620

Max. system performance36W

With operating deviceYes

With light sourceYes

Nominal voltage220 - 240V

Surface protection housingPowder coated

Photobiological safety according to EN 62471RG0

Number of poles5

Impact resistanceIK02

IP protection)IP20

Protection classI

Voltage typeAC

Cover materialOther

Housing materialAluminum
