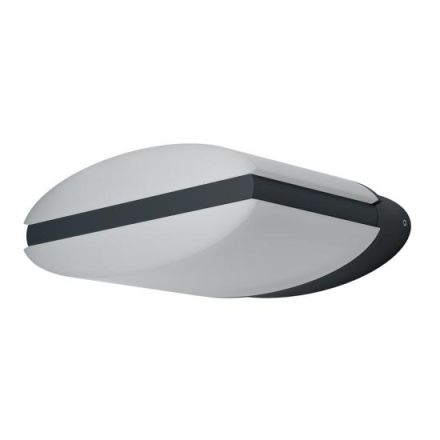

LEDVANCE Osram 4058075205079 ENDURA STYLE ELLIPSE 13W DG LED bollard light

LEDVANCE Osram 4058075205079 ENDURA STYLE ELLIPSE 13W DG LED bollard light

In stock

SKU: 732179

Price on request

€38.85

€0

Overview

Decorative and very bright lights. Product features: Very bright and functional LED outdoor lights. Housing made of die-cast aluminum. Available as wall and bollard lights. Product advantages: Energy efficient thanks to LED technology. Simple and quick installation. Areas of application: Outdoor use (IP44). Gardens, balconies and other outdoor areas. Illumination of facades. Path lighting. Driveways. Technical equipment: Complete mounting and connection accessories included.

Property	Value
Max. System power:	12.50 W
Rated luminous flux according to IEC 62722-2-1:	890 lm
Length:	161.0 mm
Width:	186.0 mm
Height/depth:	75.0 mm
Protection rating (IP):	IP44
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	gray
Housing material:	aluminum
Color temperature:	3000 K
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Suitable for wall mounting:	yes
Energy efficiency class of the built-in light source:	A++, A+, A (LED)
Voltage type:	AC
With motion detector:	no
With Light source:	no
Light source:	LED not replaceable
With control gear:	yes
Without dimming function:	yes
With light sensor:	no
Control gear:	EVG
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for Pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Covering of the lamp with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in device):	no
LED nominal current at Constant current:	103 mA
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	no
Luminaire luminous efficacy:	71 lm/W
Power factor:	0.5

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

HABENDURA STYLE ELLIPSE 13W DG

Manufacturer

HAN4058075205079

GTIN4058075205079

Covering the luminaire with thermal insulation material possibleNo

Rated luminous flux according to IEC 62722-2-1890lm

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width186.0 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorGray

Height/Depth75.0 mm

LED nominal current at constant current103mA

Power factor0.5

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy71lm/W

LampsLED not replaceable

Light colorWhite

Length161.0 mm

Max. system performance12.50W

With operating deviceYes

With motion detectorNo

With light sourceNo

With light sensorNo

With air slotsNo

Nominal voltage

Without dimming functionYes

IP protection)IP44

Protection classI

Voltage type

Housing materialAluminum
