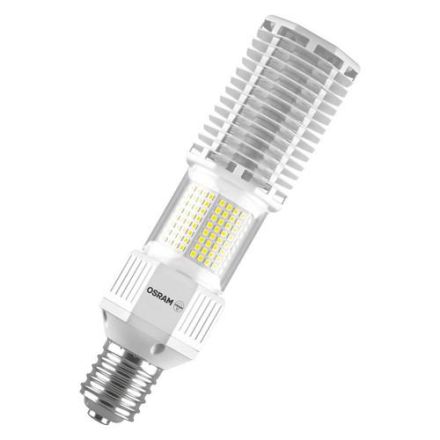

LEDVANCE Osram 4058075453784 NAV 100 LED 50W/740 85-110V E4010X1 LED lamp

In stock
SKU: 841837
€107.16
Into a basketIn the basketGo

Overview

LED replacement for high-pressure sodium lamps for outdoor lighting. Product features: Very high efficiency of up to 185 lm/W. System power factor: > 0.7. Protection class: IP40. High surge protection: up to 4 kV (LN). Long service life of up to 50,000 hours (L70B50). Product advantages: Direct retrofit for conventional high-pressure sodium lamps (NAV): Operation on conventional ballast/low-loss ballast, compensation capacitor and igniter without rewiring. Saves up to 52% energy when used as a replacement for NAV lamps. Additional cost savings thanks to compatibility with conventional ballast with power reduction (half-night switching). Low maintenance and cost savings due to long service life. Similar light distribution to traditional NAV lamps. Areas of application: Streets. Area lighting. Pedestrian zones. Parks.

PropertyValue
Lamp wattage:50 W
Rated luminous flux according to IEC 62722-2-1:9000 lm
Socket:E40
Energy efficiency class:A++
Nominal voltage:85 to 110 V
Length:260.0 mm
Dimmable:no
Average nominal service life:50000 h
Diameter:70.0 mm
Weighted energy consumption in 1,000 hours:55 kWh
Voltage type:AC
Color:white
Light color according to EN 12464-1:neutral white 3300 to 5300 K
Protection class (IP):IP40
With remote control:no
Glass/cover design:clear
Luminous flux:9000 lm
Nominal current:950 mA
Power factor:0.70
Lamp luminous efficacy:180 lm/W
Filament lamp:no
Light color:740
Housing color:white
Beam angle:360.00 °
Color consistency (McAdam ellipse):SDCM6
Energy efficiency index (EEI):0.08
Min. Number of switching operations:100000
Total harmonic distortion (THD):4
Remote control possible:no
Photobiological safety according to EN 62471:RG1

Characteristics

Energy efficiency index (EEI)0.08
Total harmonic distortion (THD)4
HABLED 50W/740 85-110V E4010X1
ManufacturerLEDVANCE Osram
HAN4058075453784
GTIN4058075453784
Glass/cover designClear
Beam angle360.00°
Rated luminous flux according to IEC 62722-2-19000lm
DimmableNo
Diameter70.0 mm
Energy efficiency classA++
ColorWhite
Color consistency (McAdam ellipse)SDCM6
Remote control possibleNo
Filament lampNo
Housing colorWhite
Weighted energy consumption in 1,000 hours55kWh
Lamp power50W
Lamp luminous efficacy180lm/W
Power factor0.70
Light color740
Light colour according to EN 12464-1Neutral white 3300 to 5300 K
Luminous flux9000lm
Length260.0 mm
Min. number of switching operations100000
With remoteNo
Average nominal life50000 hours
Nominal voltage85 to 110V
Rated current950mA
Photobiological safety according to EN 62471RG1
IP protection)IP40
BaseE40
Voltage typeAC
