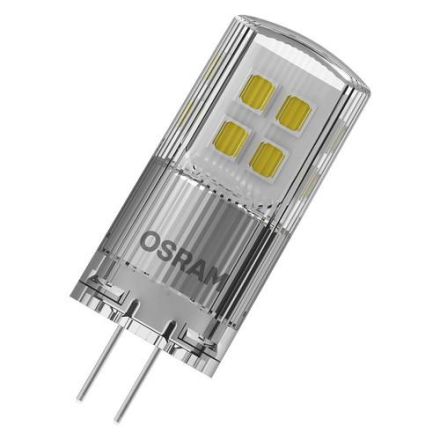

LEDVANCE Osram 4058075622388 LED PIN 12 V DIM 20 320° 2W/2700K G4 LED lamp

In stock
SKU: 842326
€8.73
Into a basketIn the basketGo

Overview

Dimmable 12 V low-voltage LED lamps with retrofit plug-in base. Product features: Dimmable (on many commercially available dimmers, see also www.ledvance.de/dim). Compatible with many commercially available electronic ballasts (see also compatibility list). LED alternative to low-voltage halogen lamps. Base: G4, GY6.35. Product advantages: Variable use with direct and alternating voltage possible. Good all-round light emission. Ideal for decorative and free-burning use. Very long service life of up to 25,000 hours. Four-year guarantee. Areas of application: Decorative applications. For atmospheric lighting accents in living rooms and party cellars. Use outdoors only in suitable outdoor lights.

PropertyValue
Lamp wattage:2 W
Color temperature:2700 K
Socket:G4
Lamp shape:other
Nominal voltage:12 V
Length:40.00 mm
Color rendering index CRI:80-89
Average nominal service life:25000 h
Diameter:15.00 mm
Weighted energy consumption in 1,000 hours:2.00 kWh
Voltage type:AC/DC
Color:multicolored
Light color according to EN 12464-1:warm white <3300 K
Protection class (IP):IP20
With remote control:no
Glass/cover design:clear
Luminous flux:200 lm
Nominal current:190 mA
Power factor:0.50
Lamp luminous efficacy:100 lm/W
Filament lamp:no
Housing color:grey
Color consistency (McAdam ellipse):SDCM6
Lamp designation:other
Min. Number of switching operations:100000
Remote control possible:no
Photobiological safety according to EN 62471:RG1

Characteristics

HABLED PIN 12V DIM 20 320° 2W/2700K G4
ManufacturerLEDVANCE Osram
HAN4058075622388
GTIN4058075622388
Glass/cover designClear
Diameter15.00 mm
ColorMulticolored
Color consistency (McAdam ellipse)SDCM6
Color temperature2700K
Color rendering index CRI80-89
Remote control possibleNo
Filament lampNo
Housing colorGray
Weighted energy consumption in 1,000 hours2.00 kWh
Lamp designationOther
Lamp shapeOther
Lamp power2W
Lamp luminous efficacy100lm/W
Power factor0.50
Luminous flux200lm
Length40.00 mm
Min. number of switching operations100000
With remoteNo
Average nominal life25000 hours
Nominal voltage12V
Rated current190mA
Photobiological safety according to EN 62471RG1
IP protection)IP20
BaseG4
Voltage typeAC/DC
