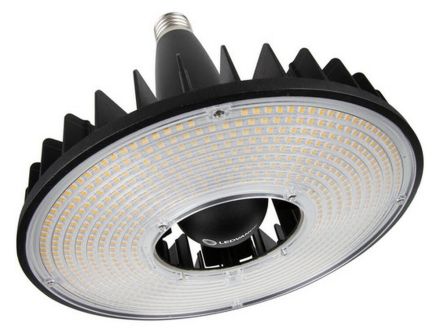

LEDVANCE Osram 4058075780385 HID LED HB 105W/840 230VUN E40 FS1 LED lamp

In stock
SKU: 1061971
€153.99
Into a basketIn the basketGo

Overview

LED replacement of HID lamps for hall lights. Product features: Protection class: IP40. High surge protection: up to 4 kV (LN). Product advantages: Direct replacement for conventional HPD lamps thanks to KVG and ignitor compatibility. For maximum energy efficiency, suitable for operation with mains voltage without ballast. Up to 68% energy savings when replacing conventional HQI lamps. Effective thermal management for a wide operating temperature range. Low maintenance due to long service life. 100% light immediately, no warm-up time. Areas of application: LED alternative for applications with high luminous flux requirements. Industrial and warehouse areas. Outdoor applications only in suitable luminaires. Technical equipment: Safety rope for the lamp included.

PropertyValue
Color temperature:4000 K
Color rendering index CRI:80-89
Color consistency (McAdam ellipse):SDCM6
Protection class (IP):IP40
Length:263.00 mm
Voltage type:AC
Nominal voltage:220 - 240 V
Housing color:black
Photobiological safety according to EN 62471:RG1
Weight:1.4
Weight unit:KG
Color:black
Socket:E40
Diameter:250.00 mm
Lamp luminous efficacy:133 lm/W
Luminous intensity:6636 cd
Lamp shape:other
Light color according to EN 12464-1:neutral white 3300 to 5300 K
Glass/cover design:clear
Average nominal service life:50000 h
Weighted energy consumption in 1,000 hours:105.00 kWh
Lamp wattage:105 W
Luminous flux:14000 lm
Min. Number of switching operations:100000
Beam angle:100.00 °
Rated luminous flux according to IEC 62612:14000 lm
Energy efficiency class according to EU Directive 2019/2015:E
Short description:HID LED Highbay Universal P 14000 LM 105W 840 E40
Energy spectrum:A - G

Characteristics

HABHID LED HB 105W/840 230VUN E40 FS1
ManufacturerLEDVANCE Osram
HAN4058075780385
GTIN4058075780385
Glass/cover designClear
Beam angle100.00 °
Rated luminous flux according to IEC 6261214000lm
Diameter250.00 mm
Energy spectrumA - G
Energy efficiency class according to EU Directive 2019/2015E
ColorBlack
Color consistency (McAdam ellipse)SDCM6
Color temperature4000K
Color rendering index CRI80-89
Housing colorBlack
Weight1,4
Weighted energy consumption in 1,000 hours105.00 kWh
Weight unit kg
Short descriptionHID LED Highbay Universal P 14000 LM 105W 840 E40
Lamp shapeOther
Lamp power105W
Lamp luminous efficacy133lm/W
Light colour according to EN 12464-1Neutral white 3300 to 5300 K
Luminous flux14000lm
Light intensity6636 cd
Length263.00 mm
Min. number of switching operations100000
Average nominal life50000 hours
Nominal voltage220 - 240V
Photobiological safety according to EN 62471RG1
IP protection)IP40
BaseE40
Voltage typeAC
