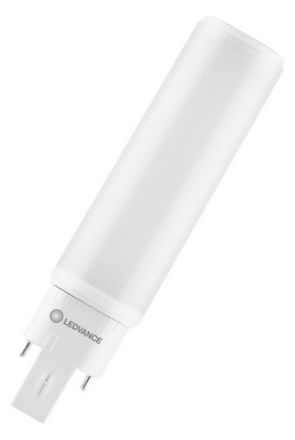

LEDVANCE Osram 4058075821972 DULUX LED D/E18 HF V 7W 830 G24Q-2 LED lamp LB23

In stock
SKU: 1062507
€16.13
Into a basketIn the basketGo

Overview

LED replacement for KLLni, with 4-pin G24q plug-in base for operation on electronic ballast or mains voltage. Product features: LED replacement for conventional compact fluorescent lamps in electronic ballast lights or on mains voltage. Lifespan: up to 30,000 hours. Rotatable base around its longitudinal axis (90°). Single-sided 4-pin G24q plug-in base. Protection class: IP20. Mercury-free lamps. Product advantages: Easy installation. Low energy consumption. Easy lamp replacement thanks to compact design. Can be operated directly on 230 V mains voltage. Areas of application: General lighting in ambient temperatures of -20.+45 °C. Supermarkets and department stores. Hallways and corridors. Hotels, restaurants.

PropertyValue
Color temperature:3000 K
Color rendering index CRI:80-89
Color consistency (McAdam ellipse):SDCM6
Protection class (IP):IP20
Length:142.80 mm
Voltage type:AC
Nominal voltage:220 V
Housing color:white
Total harmonic distortion (THD):30
Photobiological safety according to EN 62471:RG0
Weight:0.1
Weight unit:KG
Color:white
Base:G24q-2
Diameter:33 mm
Lamp luminous efficacy:100 lm/W
Lamp shape:Tube, single-ended
Light color according to EN 12464-1:warm white
Version Glass/cover:frosted
Average nominal lifetime:30000 h
Nominal current:32 mA
Weighted energy consumption in 1,000 hours:7 kWh
Lamp wattage:7 W
Luminous flux:700 lm
Min. Number of switching operations:200000
Beam angle:120 °
Rated luminous flux according to IEC 62612:700 lm
Energy spectrum:A - G
Energy efficiency class according to EU Directive 2019/2015:F
Short description:DULUX LED D/E HF & AC MAINS V 7W 830 G24Q-2

Characteristics

Total harmonic distortion (THD)30
HABDULUX LED D/E18 HF V 7W 830 G24Q-2
ManufacturerLEDVANCE Osram
HAN4058075821972
GTIN4058075821972
Glass/cover designMatte
Beam angle120°
Rated luminous flux according to IEC 62612700lm
Diameter33 mm
Energy spectrumA - G
Energy efficiency class according to EU Directive 2019/2015F
ColorWhite
Color consistency (McAdam ellipse)SDCM6
Color temperature3000K
Color rendering index CRI80-89
Housing colorWhite
Weight0,1
Weighted energy consumption in 1,000 hours7 kWh
Weight unit kg
Short descriptionDULUX LED D/E HF & AC MAINS V 7W 830 G24Q-2
Lamp power7W
Lamp luminous efficacy100lm/W
Light colour according to EN 12464-1Warm white
Luminous flux700lm
Length142.80 mm
Min. number of switching operations200000
Average nominal life30000 hours
Nominal voltage220V
Rated current32mA
Photobiological safety according to EN 62471RG0
IP protection)IP20
BaseG24q-2
Voltage typeAC
