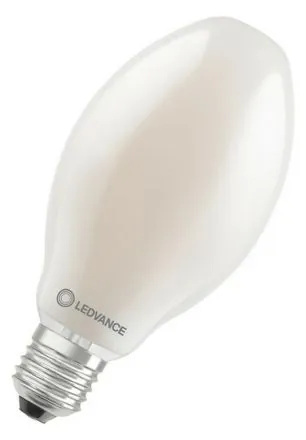

LED replacement for HQL lamps for design-oriented applications in outdoor lighting. Product features: Replacement for HQL: Suitable for operation with conventional ballasts (KVG, VVG) for HQL or 230 V mains voltage. Replacement for other HID: Suitable for operation with mains voltage without ballast. Power factor: 0.9. Protection class: IP65. Overvoltage protection: up to 2 kV (LN). Product advantages: Same design as traditional HQL lamps with ellipsoidal, matt solid glass bulb. Complete use of the reflector of the existing lamp thanks to 360 degree beam angle. Saves up to 78% energy when used as a replacement for mercury vapor lamps (HQL). 100% light immediately, no warm-up time. Areas of application: Streets. Area lighting. Pedestrian zones. Parks. Outdoor applications only in suitable luminaires.
| Property | Value |
| Color temperature: | 2700 K |
| Color rendering index CRI: | 80-89 |
| Color consistency (McAdam ellipse): | SDCM6 |
| Protection class (IP): | IP65 |
| Length: | 151 mm |
| Voltage type: | AC |
| Nominal voltage: | 220 V |
| Photobiological safety according to EN 62471: | RG1 |
| Weight: | 0.14 |
| Weight unit: | KG |
| Socket: | E27 |
| Diameter: | 75 mm |
| Lamp luminous efficacy: | 138 lm/W |
| Lamp shape: | other |
| Light color according to EN 12464-1: | warm white |
| Glass/cover design: | frosted |
| Average nominal service life: | 25000 h |
| Nominal current: | 55 mA |
| Weighted energy consumption in 1,000 hours: | 13 kWh |
| Lamp power: | 13 W |
| Luminous flux: | 1800 lm |
| Filament lamp: | yes |
| Min. Number of switching operations: | 100000 |
| Beam angle: | 360 ° |
| Rated luminous flux according to IEC 62612: | 1800 lm |
| Energy spectrum: | A - G |
| Energy efficiency class according to EU Directive 2019/2015: | D |
| Short description: | HQL LED FIL V 1800LM 13W 827 E27 |
