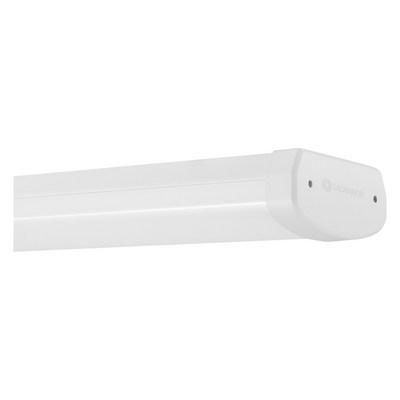

LEDVANCE Osram 4058075352872 LN SF 1200 36W/3000K WT IP44 LED ceiling light

LEDVANCE Osram 4058075352872 LN SF 1200 36W/3000K WT IP44 LED ceiling light

In stock

SKU: 705676

Price on request

€105.47

€0

Overview

Robust IP44 luminaires with direct light emission and integrated driver for surface or pendant applications. Product features: Surface-mounted luminaire with direct light emission. Protection class: IP44. Shock resistance: IK08. Available in 2 different lengths: 1200 mm and 1500 mm. High luminous efficacy: up to 115 lm/W. Through-wiring possible. Suspended installation possible. Service life (L70/B50): 50,000 h (at 25 C). White painted steel housing (similar to RAL: 9010). Diffuser material: UV-stable polycarbonate. End caps (made of polycarbonate) screwed to the housing. Product advantages: Low maintenance and low running costs. Cable entry on the back of the luminaire and on the end caps for easy electrical connection. Simple and quick installation. Low-flicker light thanks to special electronic ballast. 5 year guarantee. Areas of application: Efficient replacement for traditional T8 and T5 light strips. Public buildings. General lighting. Libraries, schools. Technical equipment: Accessories for suspension available.

Property	Value
Energy efficiency class of the built-in lamp:	G
Length:	1199 mm
Width:	145.0 mm
Height/Depth:	64.5 mm
Max. System power:	36.00 W
Rated luminous flux according to IEC 62722-2-1:	4000 lm
With control gear:	yes
Protection class (IP):	IP44
Protection class:	I
Nominal voltage:	240 V
Voltage type:	AC
Beam angle:	extremely wide beam >,80°
Color temperature:	3000 K
With light source:	yes
Light source:	LED not replaceable
Housing material:	stainless steel
Cover material:	opal plastic
Light distributor:	diffuser lens/optics/panel
Impact resistance:	IK08
Housing color:	white
Without dimming function:	yes
Rated ambient temperature according to IEC62722-2-1:	+40 °C
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	no
Light emission:	direct
With light sensor:	no
With motion detector:	no
Operating device:	EVG
Suitable for recessed mounting:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Light colour:	white
Design of the grid:	matt
Covering of the luminaire with thermal insulation material possible:	no
Suitable for computer workstations in accordance with EN 12464-1:	no
DMX dimming:	no
DSI dimming:	no
Luminaire with limited surface temperature 'D-mark':	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in the device):	no
LED nominal current at constant current:	180 mA
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge phase control:	no
Dimming leading edge phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	no
Luminaire luminous efficacy:	110 lm/W
Power factor:	0.90
Wiring type:	with through wiring
Number of poles:	4

Characteristics

Energy efficiency class of the permanently installed light sourceG

HABLN SF 1200 36W/3000K WT IP44

Manufacturer

HAN4058075352872

GTIN4058075352872

Covering the luminaire with thermal insulation material possibleNo

Type of wiringWith through wiring

Execution of the gridFrosted

Beam angleExtremely wide beam >80°

Rated luminous flux according to IEC 62722-2-14000lm

Rated ambient temperature according to IEC62722-2-1+40°C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width145.0 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Suitable for wall mountingNo

Housing colorWhite

Height/Depth64.5 mm

LED nominal current at constant current180mA

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy110lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Length1199 mm

Max. system performance36.00W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage

Without dimming functionYes

Number of poles4

Impact resistanceIK08

Protection classI

Voltage type

Cover materialPlastic opal

Housing materialStainless steel
