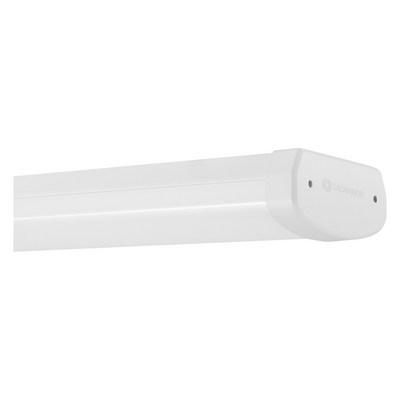

LEDVANCE Osram 4058075352919 LN SF 1500 43W/3000K WT IP44 LED ceiling light

LEDVANCE Osram 4058075352919 LN SF 1500 43W/3000K WT IP44 LED ceiling light

In stock

SKU: 705678

Price on request

€132.96

€0

Overview

Robust IP44 luminaires with direct light emission and integrated driver for surface or pendant applications. Product features: Surface-mounted luminaire with direct light emission. Protection class: IP44. Shock resistance: IK08. Available in 2 different lengths: 1200 mm and 1500 mm. High luminous efficacy: up to 115 lm/W. Through-wiring possible. Suspended installation possible. Service life (L70/B50): 50,000 h (at 25 C). White painted steel housing (similar to RAL: 9010). Diffuser material: UV-stable polycarbonate. End caps (made of polycarbonate) screwed to the housing. Product advantages: Low maintenance and low running costs. Cable entry on the back of the luminaire and on the end caps for easy electrical connection. Simple and quick installation. Low-flicker light thanks to special electronic ballast. 5 year guarantee. Areas of application: Efficient replacement for traditional T8 and T5 light strips. Public buildings. General lighting. Libraries, schools. Technical equipment: Accessories for suspension available.

Property	Value
Max. System power:	43.00 W
Rated luminous flux according to IEC 62722-2-1:	5000 lm
Length:	1499 mm
Width:	145.0 mm
Height/depth:	64.5 mm
Protection rating (IP):	IP44
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	stainless steel
Color temperature:	3000 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	40000 h
Suitable for wall mounting:	no
Energy efficiency class of the built-in light source:	A++, A+, A (LED)
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam>80°
With light source:	yes
Light source:	LED not replaceable
With control gear:	yes
Rated service life L70/B10 at 25 °C:	60000 h
Cover material:	Opal plastic
Light distributor:	Diffuser lens/optics/panel
Without dimming function:	yes
Light emission:	direct
With light sensor:	no
Operating device:	EVG
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Design of the grid:	matt
Covering of the lamp with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
LED nominal current at constant current:	210 mA
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	no
Rated service life L70/B50 at 25 °C:	60000 h
Rated service life L80/B50 at 25 °C:	40000 h
Rated service life L90/B10 at 25 °C:	25000 h
Rated service life L90/B50 at 25 °C:	25000 h
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	115 lm/W
Type of wiring:	with through wiring
Number of poles:	4

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

Rated service life L90/B10 at 25 °C25000 h

Rated service life L70/B10 at 25 °C60000 h

Rated service life L80/B50 at 25 °C40000 h

HABLN SF 1500 43W/3000K WT IP44

Manufacturer

HAN4058075352919

GTIN4058075352919

Covering the luminaire with thermal insulation material possibleNo

Type of wiringWith through wiring

Execution of the gridFrosted

Rated lifetime L70/B50 at 25 °C60000 hours

Rated lifetime L80/B10 at 25 °C40000 hours

Rated luminous flux according to IEC 62722-2-15000lm

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width145.0 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth64.5 mm

LED nominal current at constant current210mA

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy115lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Length1499 mm

Max. system performance43.00W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage

Without dimming functionYes

Number of poles4

Impact resistanceIK08

IP protection)IP44

Protection classI

Voltage type

Cover materialPlastic opal

Housing materialStainless steel
