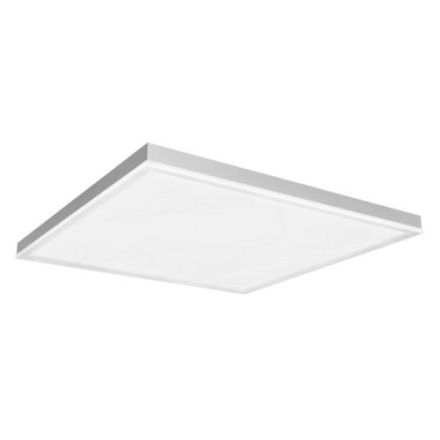

LEDVANCE Osram 4058075470675 PLANON FRAMELESS 300X300 19W 830FS1 LED ceiling light

LEDVANCE Osram 4058075470675 PLANON FRAMELESS 300X300 19W 830FS1 LED ceiling light

In stock

SKU: 842932

Price on request

€38.84

€0

Overview

Frameless panel lights for wall and ceiling mounting. Product features: Ceiling light with advanced LED technology. Available in square and rectangular shape. Color temperature: 3,000 K. Aluminum housing, frosted PMMA diffuser. Product advantages: Homogeneous light distribution. Simple and quick installation. Areas of application: Indoor applications. Decorative home lighting. Wall and ceiling mounting. Technical equipment: Complete mounting and connection accessories included. Driver included

Property	Value
Max. System power:	19.00 W
Rated luminous flux according to IEC 62722-2-1:	1500 lm
Length:	300.00 mm
Width:	300.00 mm
Height/depth:	62.00 mm
Protection class (IP):	IP20
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC
With motion detector:	no
With light source:	yes
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Connection type:	Plug-in terminal
With operating device:	yes
Without dimming function:	yes
Light emission:	direct
With light sensor:	no
Operating device:	EVG
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	matt
Covering of the luminaire with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L70/B50 at 25 °C:	25000 h
Luminaire luminous efficacy:	80 lm/W
Power factor:	0.90
Type of Wiring:	Termination
Number of poles:	2

Characteristics

HABPLANON FRAMELESS 300X300 19W 830FS1

Manufacturer

HAN4058075470675

GTIN4058075470675

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridFrosted

Rated lifetime L70/B50 at 25 °C25000 hours

Rated luminous flux according to IEC 62722-2-11500lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width300.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Height/Depth62.00 mm

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy80lm/W

Light emissionDirect

Light colorWhite

Length300.00 mm

Max. system performance19.00 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage

Without dimming functionYes

Number of poles2

Impact resistanceIK03

IP protection)IP20

Protection classII

Voltage type

Housing materialAluminum
