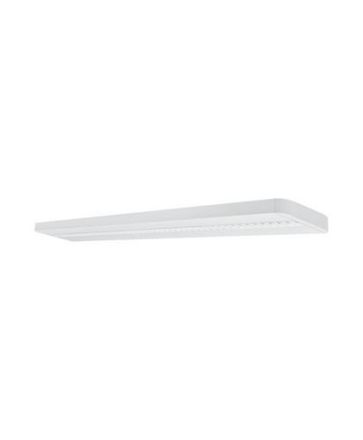

LEDVANCE Osram 4058075503960 LN INDV D 1200 34W/4000K DALI LED ceiling light

In stock
SKU: 732496
€208
Into a basketIn the basketGo

Overview

Surface-mounted luminaire for single or strip applications and DALI-2 IoT technology. Product features: IoT-enabled luminaire with DALI-2 technology. Each LED with individual lens and reflector for UGR < 16 and homogeneous light distribution. Suspended installation with suspension set. Can be connected to a seamless strip using a mechanical connector (when surface-mounted or suspended). Versions with a length of 1200 or 1500 mm available. Luminous flux up to 5700 lm. Luminous efficacy: up to 125 lm/W. Initial color consistency: 3 SDCM (threshold unit). Glow wire test according to IEC 60695-2-12: 850 °C. Versions with CRI 90 available. Service life (L70/B50): 60,000 h (at 25 °C). Product advantages: Suitable luminaire for VIVARES and other DALI-2 light management systems. Homogeneous light distribution and reduced glare thanks to the IndiviLED® optics. Various mounting options. The product family offers comprehensive solutions for a wide range of applications. Up to 50% energy savings compared to T5 light strips. Other variants with DALI electronic ballast, emergency lighting function in accordance with IEC 60598-2-22 or through-wiring also available. Robust housing with IK06. Low-flicker light thanks to special electronic ballast. 5-year guarantee. Application areas: Direct replacement for luminaires with fluorescent lamps. Offices, schools. General interior lighting. Corridors, entrance areas. Seamless light strips. Shop lighting. Technical equipment: Ceiling connection box available. Suspension set available. Mechanical connector available. Through-wiring set available.

PropertyValue
Max. System power:34.00 W
Rated luminous flux according to IEC 62722-2-1:4200 lm
Length:1199.00 mm
Width:120.00 mm
Height/depth:40.00 mm
Protection class (IP):IP20
Protection class:I
Luminaire with limited surface temperature 'D-mark':no
Nominal voltage:220 to 240 V
Housing color:white
Housing material:aluminum
Color temperature:4000 K
Impact resistance:IK06
Color rendering index CRI:80-89
Suitable for ceiling mounting:yes
Voltage type:AC
With motion detector:no
Beam angle:wide beam 41-80°
With light source:yes
Light source:LED not replaceable
Rated ambient temperature according to IEC62722-2-1:-25 to 50 °C
Connection type:Plug terminal
With operating device:yes
Light distributor:Focus lens
Without dimming function:no
Light emission:direct
With light sensor:no
Operating device:EVG
Suitable for Recessed installation:no
Light color:white
Suitable for computer workstations in accordance with EN 12464-1:yes
Suitable for strip light configuration:no
Suitable for pendant suspension:yes
Suitable for surface mounting:yes
Suitable for emergency lighting:no
Design of the grid:matt
DMX dimming:no
DSI dimming:no
With air slots:no
Dimming LineSwitch:no
Dimming potentiometer (integrated in device):no
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming manufacturer-specific:no
Dimming DALI:yes
Dimming mains voltage modulation:no
Dimming trailing edge:no
Phase control dimming:no
Programmable dimming:no
RF dimming:no
Sine wave reduction dimming:no
Touch and dim dimming:no
Zigbee dimming:no
Push button dimming:no
Rated service life L70/B50 at 25 °C:60000 h
Glow wire test according to IEC 60695-2-11:650 °C - 30 s
Luminaire luminous efficacy:125 lm/W
Power factor:0.90
Type of wiring:suitable for through wiring
Number of poles:5

Characteristics

HABLN INDV D 1200 34W/4000K DALI
ManufacturerLEDVANCE Osram
HAN4058075503960
GTIN4058075503960
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Execution of the gridFrosted
Beam angleWide beam 41-80°
Rated lifetime L70/B50 at 25 °C60000 hours
Rated luminous flux according to IEC 62722-2-14200lm
Rated ambient temperature according to IEC62722-2-1-25 to 50 °C
Operating deviceElectronic ballast
Suitable for computer workstations according to EN 12464-1Yes
Width120.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature4000K
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingNo
Suitable for light strip configurationNo
Suitable for emergency lightingNo
Suitable for pendulum suspensionYes
Housing colorWhite
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth40.00 mm
Power factor0.90
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy125lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributorFocus lens
Length1199.00 mm
Max. system performance34.00W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
With air slotsNo
Nominal voltage220 to 240 V
Without dimming functionNo
Number of poles5
Impact resistanceIK06
IP protection)IP20
Protection classI
Voltage typeAC
Housing materialAluminum
