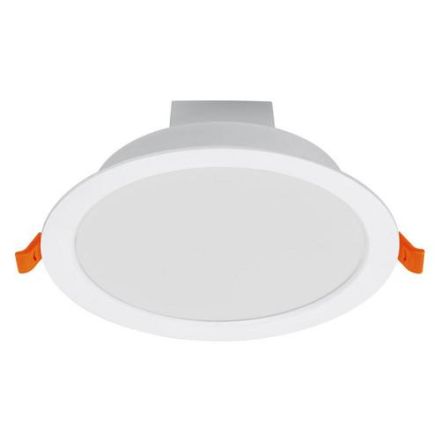

LEDVANCE Osram 4058075573376 SMART WIFI SP 170MM 110DEG RGBTW WT LED recessed ceiling spotlight

LEDVANCE Osram 4058075573376 SMART WIFI SP 170MM 110DEG RGBTW WT LED recessed ceiling spotlight

In stock

SKU: 842887

Price on request

€30.23

€0

Overview

Smart recessed downlight with integrated driver TW, RGB and dimmable. Product features: Can be controlled via LEDVANCE SMART+ WiFi app (with at least AndroidT 4.4 or iOS 9.0). Can be controlled via Google Assistant or Amazon Alexa. Color temperature adjustable via Tunable White: 3,000.6,500 K. Dimmable. Network protocol: WiFi. Housing material: plastic. Product advantages: TW and RGB. Beam angle 36°, 100°, 110°. Areas of application: Indoor applications. Corridors, entrance areas, stairwells, living rooms, basements. Bedrooms. Kitchens. Technical equipment: Complete installation and connection accessories included

Property	Value
Max. System power:	12.00 W
Rated luminous flux according to IEC 62722-2-1:	1000 lm
Length:	170.00 mm
Height/depth:	57.00 mm
Protection rating (IP):	IP20
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Color temperature:	2700 to 6500 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Outer diameter:	170.00 mm
Voltage type:	AC
With motion detector:	no
With light source:	yes
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Connection type:	Screw terminal
With operating device:	yes
Installation height/depth:	70.0 mm
Without dimming function:	no
Installation width:	145 mm
With light sensor:	no
Suitable for built-in installation:	yes
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for Pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Installation diameter:	145 mm
Installation length:	145 mm
Design of the grid:	matt
Covering of the light with thermal insulation material possible:	no
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L70/B50 at 25 °C:	25000 h
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	90 lm/W
Power factor:	0.70
Wiring type:	Termination
Number of poles:	2

Characteristics

HABSMART WIFI SP 170MM 110DEG RGBW WT

Manufacturer

HAN4058075573376

GTIN4058075573376

Covering the luminaire with thermal insulation material possibleNo

Connection typeScrew terminal

Type of wiringDiploma

Execution of the gridFrosted

Outer diameter170.00 mm

Rated lifetime L70/B50 at 25 °C25000 hours

Rated luminous flux according to IEC 62722-2-11000lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width145 mm

Installation diameter145 mm

Installation height/depth70.0 mm

Installation length145 mm

Color temperature

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth57.00 mm

Power factor0.70

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy90lm/W

Length170.00 mm

Max. system performance12.00 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage

Without dimming functionNo

Number of poles2

Impact resistanceIK03

IP protection)IP20

Protection classII

Voltage type

LEDVANCE Osram 4058075573376 SMART WIFI SP 170MM 110DEG RGBTW WT LED recessed ceiling spotlight
