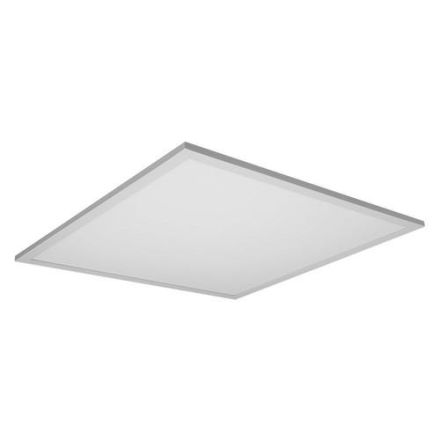

LEDVANCE Osram 4058075576056 SUNATHOME PLANON PLUS 60X60 TW LED ceiling light

LEDVANCE Osram 4058075576056 SUNATHOME PLANON PLUS 60X60 TW LED ceiling light

In stock

SKU: 842747

Price on request

€112.88

€0

Overview

Panel lights with Human Centric Lighting technology. Product features: Color temperature adjustable via Tunable White: 2,200-5,000 K. Controllable via LEDVANCE SMART+ WiFi app (with at least AndroidT 4.4 or iOS 9.0). Control via Google Assistant or Amazon Alexa possible. Dimmable. Innovative full-spectrum SunLike LEDs with CRI95. SunLike LEDs with reduced blue light content in the LED spectrum. Innovative luminaire coating against household germs and odors. Automatic biorhythm function. Product advantages: Enable increased concentration and efficiency. Improve general activity levels and alertness during the day. Improve sleep rhythm and intensity. Improve visual comfort. Improved level of clean air safety by killing household germs and bad odors. Homogeneous light distribution. Simple and quick installation. Areas of application: Indoor applications. Kitchen, living room, children's room or study. Technical equipment: Control via app or voice control requires a compatible smart home system. A smartphone or tablet is required for control via LEDVANCE SMART + WiFi app. Complete mounting and connection accessories included

Property	Value
Max. System power:	35.00 W
Rated luminous flux according to IEC 62722-2-1:	2300 lm
Length:	600.00 mm
Width:	600.00 mm
Height/depth:	56.00 mm
Protection rating (IP):	IP20
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	2200 to 5000 K
Impact resistance:	IK03
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	yes
Voltage type:	AC
With motion detector:	no
With light source:	yes
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Connection type:	Plug-in terminal
Cover material:	Opal plastic
Without dimming function:	no
With light sensor:	no
Suitable for recessed mounting:	no
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for Surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	other
Covering of the lamp with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
0-10 V dimming:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L70/B50 at 25 °C:	30000 h
Luminaire luminous efficacy:	95 lm/W
Power factor:	0.5
Type of wiring:	Termination
Number of poles:	2

Characteristics

HABSUNATHOME PLANON PLUS 60X60 TW

Manufacturer

HAN4058075576056

GTIN4058075576056

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridOther

Rated lifetime L70/B50 at 25 °C30000 hours

Rated luminous flux according to IEC 62722-2-12300lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Suitable for computer workstations according to EN 12464-1No

Width600.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI90-100

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Height/Depth56.00 mm

Power factor0.5

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy95lm/W

Length600.00 mm

Max. system performance35.00W

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage

Without dimming functionNo

Number of poles2

Impact resistanceIK03

IP protection)IP20

Protection classII

Voltage type

Cover materialPlastic opal

Housing materialAluminum
