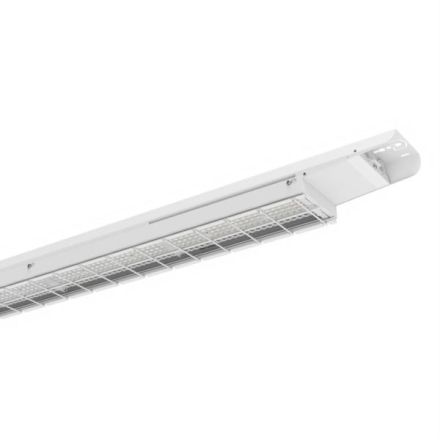

LEDVANCE Osram 4058075676367 LB FLEX BP 1500 P 105W 840 W LED ceiling light

LEDVANCE Osram 4058075676367 LB FLEX BP 1500 P 105W 840 W LED ceiling light

In stock

SKU: 1062110

Price on request

€199.36

€0

Overview

Ball-proof low-bay lights with an attractive linear design, up to 155 lm/W. Product features: Ball-proof low-bay lights for mounting heights of up to ~10 m in 4000 K. Through-wiring cable already installed. Long service life (L80/B10): up to 100,000 h. High color consistency: 3 SDCM. Product advantages: Ball-proof light with increased physical robustness (according to DIN 18032-3 and DIN 57710-13). Economical thanks to high light output of up to 155 lm/W. Simple and quick installation thanks to a connection box with 5- and 7-pin, tool-free connection terminal. Modern and robust design. 5-year guarantee. Areas of application: Sports halls. Indoor sports facilities.

Property	Value
BEG funding program:	Yes
Rated luminous flux according to IEC 62722-2-1:	16275 lm
Color temperature:	4000 K
Color rendering index CRI:	80-89
Protection class (IP):	IP23
Impact resistance:	IK08
Protection class:	I
Rated ambient temperature according to IEC62722-2-1:	-25 - 50 °C
Length:	1527 mm
Width:	117.00 mm
Height/Depth:	76.00 mm
Voltage type:	AC
Nominal voltage:	220 - 240 V
Max. System power:	105 W
Luminaire luminous efficacy:	155 lm/W
Power factor:	0.90
With control gear:	yes
Number of poles:	5
Type of wiring:	suitable for through-wiring
With light source:	yes
Light source:	LED not replaceable
Light distribution:	symmetrical
Light distributor:	diffuser lens/optics/panel
Housing color:	white
Total harmonic distortion (THD):	20
Weight:	6
Weight unit:	KG
Ball-proof:	yes
With protective cover:	yes
Nominal current:	450 mA
Rated service life L70/B50 at 25 °C:	100000 h
Without dimming function:	yes
Reflector:	without
Socket:	without
Max. number of lights circuit breaker C16:	27
Max. number of lights circuit breaker B16:	21
Short description:	LOW BAY FLEX BALL PROOF 1500 P 105W 840 W

Characteristics

Total harmonic distortion (THD)20

HABLB FLEX BP 1500 P 105W 840 W

Manufacturer

HAN4058075676367

GTIN4058075676367

Type of wiringSuitable for through wiring

Rated lifetime L70/B50 at 25 °C100000 hours

Rated luminous flux according to IEC 62722-2-116275lm

Rated ambient temperature according to IEC62722-2-1-25 - 50 °C

Width117.00 mm

Color temperature

Color rendering index CRI80-89

VersionWithout

Housing colorWhite

Weight6

Weight unit kg

Height/Depth76.00 mm

Short descriptionLOW BAY FLEX BALL PROOF 1500P 105W 840W

Power factor0.90

Luminaire luminous efficacy155lm/W

LampsLED not replaceable

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length1527 mm

Max. number of luminaires Circuit breaker B1621

Max. number of luminaires Circuit breaker C1627

Max. system performance105W

With operating deviceYes

With light sourceYes

With protective coverYes

Nominal voltage

Rated current450mA

Without dimming functionYes

Number of poles5

ReflectorWithout

Impact resistanceIK08

IP protection)IP23

Protection classI

Voltage type
