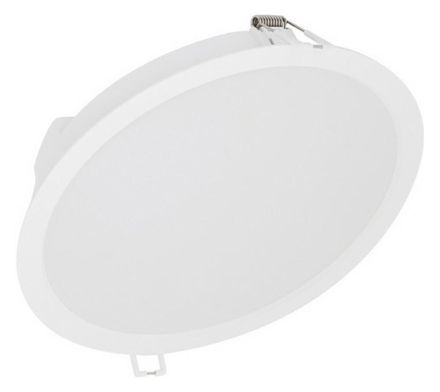

LEDVANCE Osram 4058075703179 DL IP44 DN 190 18W 865 WT LED recessed ceiling spotlight

LEDVANCE Osram 4058075703179 DL IP44 DN 190 18W 865 WT LED recessed ceiling spotlight

In stock

SKU: 1062052

Price on request

€11.19

€0

Overview

Downlight with IP44 protection. Product features: Protection class: IP44. Luminous efficacy: 100 lm/W. Product advantages: High luminous efficacy. Very homogeneous light. Easy installation thanks to integrated driver. Areas of application: Direct replacement for luminaires with fluorescent lamps. General lighting. Public spaces. Stairwells. Corridors. Shops. Bathrooms. Technical equipment: Frame for surface mounting available as an accessory.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	1800 lm
Color temperature:	6500 K
Protection class (IP):	IP44
Impact resistance:	IK03
Protection class:	II
Rated ambient temperature according to IEC62722-2-1:	-20 - 40 °C
Height/depth:	40 mm
Voltage type:	AC
Nominal voltage:	220 - 240 V
Max. System power:	18.00 W
Luminaire luminous efficacy:	100 lm/W
Power factor:	0.50
With control gear:	yes
Control gear:	LED control gear current-controlled
Number of poles:	2
Type of wiring:	Termination
With light source:	yes
Light source:	LED not replaceable
Light emission:	direct
Light distribution:	symmetrical
Light distributor:	diffuser lens/optics/panel
Housing color:	white
Suitable for surface mounting:	yes
Suitable for ceiling mounting:	yes
Photobiological safety according to EN 62471:	RG0
Weight:	0.2
Weight unit:	KG
Outer diameter:	190.00 mm
Reflector:	without
Socket:	without
Surface:	untreated
Suitable for recessed mounting:	yes
Adjustability:	not adjustable
Luminous flux:	1800 lm
Rated service life L70/B50 at 25 °C:	20000 h
Without dimming function:	yes
Replaceable operating device:	yes
Installation height/depth:	40 mm
Installation diameter:	175 mm
Max. number of lights circuit breaker C16:	68
Max. number of lights circuit breaker B16:	80
Short description:	DOWNLIGHT IP44 DN 190 18W 865 WT

Characteristics

HABDL IP44 DN 190 18W 865 WT

Manufacturer

HAN4058075703179

GTIN4058075703179

Type of wiringDiploma

Replaceable operating deviceYes

Outer diameter190.00 mm

Rated lifetime L70/B50 at 25 °C20000 hours

Rated luminous flux according to IEC 62722-2-11800lm

Rated ambient temperature according to IEC62722-2-1-20 - 40 °C

Operating deviceLED control gear current controlled

Installation diameter175 mm

Installation height/depth40 mm

Color temperature

VersionWithout

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Housing colorWhite

Weight0,2

Weight unit kg

Height/Depth40 mm

Short descriptionDOWNLIGHT IP44 DN 190 18W 865 WT

Power factor0.50

Luminaire luminous efficacy100lm/W

LampsLED not replaceable

Light emissionDirect

Luminous flux1800lm

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Max. number of luminaires Circuit breaker B1680

Max. number of luminaires Circuit breaker C1668

Max. system performance18.00 W

With operating deviceYes

With light sourceYes

Nominal voltage

SurfaceUntreated

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles2

ReflectorWithout

Impact resistanceIK03

IP protection)IP44

Protection classII

Voltage type

AdjustabilityNot adjustable
