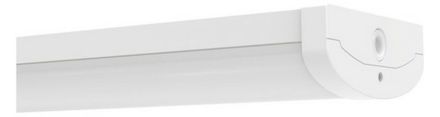

HABLN SF 600 P 18W 830 WT IP44
HAN4058075733152
GTIN4058075733152
Connection typePlug-in terminal
Type of wiringWith through wiring
Execution of the gridFrosted
Replaceable operating deviceYes
Rated lifetime L70/B50 at 25 °C70000 hours
Rated luminous flux according to IEC 62722-2-12250lm
Rated ambient temperature according to IEC62722-2-1-20 - 40 °C
Operating deviceElectronic ballast
Width166.00 mm
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for pendulum suspensionYes
Housing colorWhite
Weight1,4
Weight unit kg
Height/Depth63.00 mm
Short descriptionLINEAR SURFACE IP44 600P 18W 830 WT
Luminaire luminous efficacy125lm/W
LampsLED not replaceable
Light emissionDirect
Light distributorDiffuser lens/optics/panel
Length608.00 mm
Max. number of luminaires Circuit breaker B1649
Max. number of luminaires Circuit breaker C1649
Max. system performance18.00 W
With operating deviceYes
With light sourceYes
Rated current90,000mA
Surface protection housingPowder coated
Without dimming functionYes
Photobiological safety according to EN 62471RG0
Number of poles3
Impact resistanceIK08
IP protection)IP44
Protection classI
