HABLN SF 1500 P 45W 830 WT IP44
HAN4058075733190
GTIN4058075733190
Connection typePlug-in terminal
Type of wiringWith through wiring
Execution of the gridFrosted
Replaceable operating deviceYes
Rated lifetime L70/B50 at 25 °C70000 hours
Rated luminous flux according to IEC 62722-2-15850lm
Rated ambient temperature according to IEC62722-2-1-20 - 40 °C
Operating deviceElectronic ballast
Width166.00 mm
VersionOther
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for pendulum suspensionYes
Housing colorWhite
Weight3
Weight unit kg
Height/Depth63.00 mm

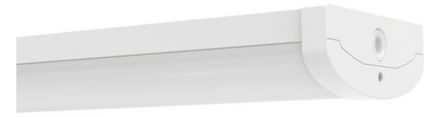

Short descriptionLINEAR SURFACE IP44 1500P 45W 830 WT
Luminaire luminous efficacy130lm/W
LampsLED not replaceable
Light emissionDirect
Light distributorDiffuser lens/optics/panel
Length1476.00 mm
Max. number of luminaires Circuit breaker B1622
Max. number of luminaires Circuit breaker C1622
Max. system performance45.00W
With operating deviceYes
With light sourceYes
Rated current210,000mA
Surface protection housingPowder coated
Without dimming functionYes
Photobiological safety according to EN 62471RG0
Number of poles3
Impact resistanceIK08
IP protection)IP44
Protection classI
