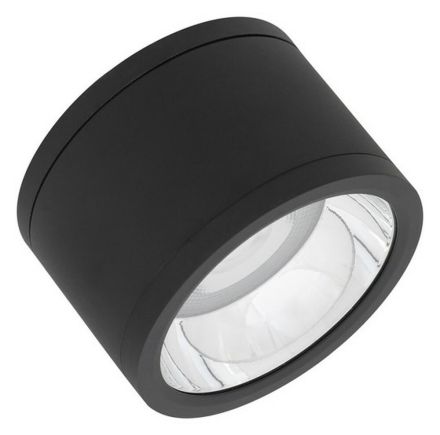

LEDVANCE Osram 4058075769175 DL SURFACE DN160P 30W830 60D IP65BK LED ceiling light

LEDVANCE Osram 4058075769175 DL SURFACE DN160P 30W830 60D IP65BK LED ceiling light

In stock

SKU: 1062196

Price on request

€105.36

€0

Overview

Surface-mounted downlight with IP65 protection. Product features: Shock resistance: IK06. Plug-in terminal for tool-free connection. Through-wiring possible. Protection class: IP65. Luminous flux: up to 4,950 lm. High luminous efficacy: up to 110 lm/W. Service life (L70/B50): 100,000 h (at 25 °C). Ambient temperature range during operation: -30.+40 °C. Product advantages: Suitable for use in dusty and damp environments thanks to high protection class. Suitable for use in public areas thanks to high IK rating. 5-year guarantee. Up to 50% energy savings (compared to luminaires that use fluorescent lamps). Areas of application: Direct replacement for luminaires with fluorescent lamps. Suitable for indoor and outdoor installations. Corridors, stairwells, entrance areas. Passages, underpasses. Public spaces.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	3150 lm
Color temperature:	3000 K
Color consistency (McAdam ellipse):	SDCM6
Protection class (IP):	IP65
Impact resistance:	IK06
Protection class:	I
Rated ambient temperature according to IEC62722-2-1:	-20 - 40 °C
Height/Depth:	110.00 mm
Voltage type:	AC
Nominal voltage:	220 - 240 V
Max. System power:	30.00 W
Luminaire luminous efficacy:	105 lm/W
With control gear:	yes
Connection type:	Plug terminal
Number of poles:	3
Type of wiring:	Terminal
With light source:	yes
Light source:	LED not replaceable
Light emission:	direct
Light distributor:	diffuser lens/optics/panel
Housing color:	black
Housing material:	aluminum
Suitable for surface mounting:	yes
Suitable for ceiling mounting:	yes
Photobiological safety according to EN 62471:	RG0
Weight:	1.3
Weight unit:	KG
Outer diameter:	160.00 mm
Grid design:	other
Nominal current:	150,000 mA
Rated service life L70/B50 at 25 °C:	100,000 h
Max. number of luminaires circuit breaker C16:	32
Max. Number of lights circuit breaker B16:	32
Replaceable operating device:	yes
Surface protection housing:	powder-coated
Without dimming function:	yes
Socket:	other
Short description:	DOWNLIGHT SURFACE IP65 DN 160 P 30W 830 60D BK

Characteristics

HABDL SURFACE DN160P 30W830 60D IP65BK

Manufacturer

HAN4058075769175

GTIN4058075769175

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridOther

Replaceable operating deviceYes

Outer diameter160.00 mm

Rated lifetime L70/B50 at 25 °C100000 hours

Rated luminous flux according to IEC 62722-2-13150lm

Rated ambient temperature according to IEC62722-2-1-20 - 40 °C

Color consistency (McAdam ellipse)SDCM6

Color temperature

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Housing colorBlack

Weight1,3

Weight unit kg

Height/Depth110.00 mm

Short descriptionDOWNLIGHT SURFACE IP65 DN 160 P 30W 830 60D BK

Luminaire luminous efficacy105lm/W

LampsLED not replaceable

Light emissionDirect

Light distributorDiffuser lens/optics/panel

Max. number of luminaires Circuit breaker B1632

Max. number of luminaires Circuit breaker C1632

Max. system performance30.00W

With operating deviceYes

With light sourceYes

Nominal voltage

Rated current150,000mA

Surface protection housingPowder coated

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles3

Impact resistanceIK06

IP protection)IP65

Protection classI

Voltage type

Housing materialAluminum
