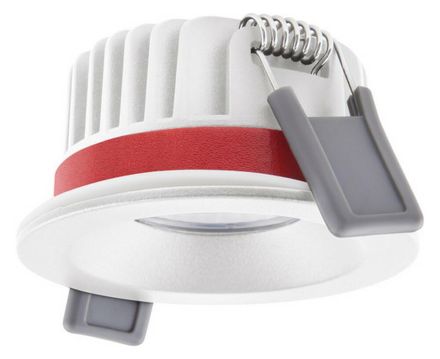

Recessed spotlights for certain fire-retardant suspended ceilings, fixed. Product features: Color rendering index Ra: 90. Protection class: IP65 (room side). Beam angle: 36°. Housing made of die-cast aluminum. Fire protection expansion tape already pre-installed. Springs with soft silicone coating. Dimmable (on many commercially available dimmers, see also www.ledvance.de/dim). Through-wiring possible. Product advantages: Fire-retardant: Developed and tested for use in certain fire-retardant suspended ceilings. Airtight construction for reduced air leakage and reduced energy loss. Powerselect: Adjustment of brightness via dip switch on the driver. Easy replacement of the external driver thanks to plug with bayonet lock. Easy installation and electrical connection thanks to tool-free connection terminals. SCALE design - great appearance, high-quality materials and small size fit into any environment. 5-year guarantee. Areas of application: Direct replacement for recessed spotlights with halogen lamps. Fire-resistant ceilings. Hotel rooms and corridors. Bars, restaurants. Galleries, museums. Technical equipment: External ballast with dip switches included for setting the power during installation. Selected DALI 2.0 driver is available as an accessory.
| Property | Value |
| Rated luminous flux according to IEC 62722-2-1: | 640 lm |
| Color temperature: | 2700 K |
| Color rendering index CRI: | 90-100 |
| Color consistency (McAdam ellipse): | SDCM3 |
| Protection class (IP): | IP65 |
| Impact resistance: | IK05 |
| Protection class: | II |
| Rated ambient temperature according to IEC62722-2-1: | -20 - 40 °C |
| Height/Depth: | 50.0 mm |
| Voltage type: | AC |
| Nominal voltage: | 220 - 240 V |
| Max. System power: | 8.00 W |
| Luminaire luminous efficacy: | 80 lm/W |
| Power factor: | 0.90 |
| With control gear: | yes |
| Control gear: | LED control gear current-controlled |
| Number of poles: | 2 |
| Type of wiring: | suitable for through-wiring |
| With light source: | yes |
| Light source: | LED not replaceable |
| Light emission: | direct |
| Light distribution: | symmetrical |
| Light distributor: | Focus lens |
| Housing colour: | white |
| Housing material: | aluminum |
| Suitable for surface mounting: | yes |
| Suitable for ceiling mounting: | yes |
| Photobiological safety in accordance with EN 62471: | RG1 |
| Weight: | 0.24 |
| Weight unit: | KG |
| Outer diameter: | 81.00 mm |
| Suitable for recessed mounting: | yes |
| Luminous flux: | 640 lm |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Dimming trailing edge: | yes |
| Dimming leading edge: | yes |
| Replaceable Operating device: | yes |
| Installation diameter: | 68 mm |
| Installation height/depth: | 50.0 mm |
| Reflector: | without |
| Socket: | without |
| Surface: | powder-coated |
| Adjustability: | not adjustable |
| Max. number of lights circuit breaker C16: | 336 |
| Max. Number of luminaires circuit breaker B16: | 336 |
| Short description: | SPOT FIRE RATED 8W 927 PS DIM IP65 WT |
