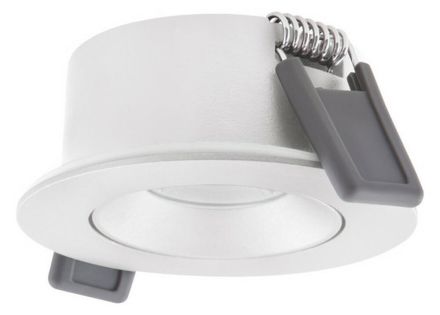

LEDVANCE Osram 4099854000003 SP AIR ADJ P 4W 927 DIM IP23 WT LED recessed ceiling spotlight

In stock
SKU: 1062122
€37.16
Into a basketIn the basketGo

Overview

Recessed spotlights for low-energy and narrow suspended ceilings, adjustable. Product features: Adjustable swivel angle: 25°. Color rendering index Ra: 90. Protection class: IP23 (room side). Beam angle: 36°. Housing made of die-cast aluminum. Springs with soft silicone coating. Dimmable (on many commercially available dimmers, see also www.ledvance.de/dim). Through-wiring possible. Product advantages: Airtight construction for reduced air leakage and reduced energy loss. Can be covered with many types of thermal insulation materials. Flat design enables installation in low ceiling cavities. Easy replacement of the external driver thanks to plug with bayonet lock. Easy installation and electrical connection thanks to tool-free connection terminals. SCALE design - great appearance, high-quality materials and small size fit into any environment. 5-year guarantee. Areas of application: Direct replacement for recessed spotlights with halogen lamps. Ceilings in low-energy houses. General lighting. Hotel rooms and corridors. Bars, restaurants. Accent lighting. Living rooms. Technical equipment: External ballast included.

PropertyValue
Rated luminous flux according to IEC 62722-2-1:300 lm
Color temperature:2700 K
Color rendering index CRI:90-100
Color consistency (McAdam ellipse):SDCM3
Protection class (IP):IP23
Impact resistance:IK03
Protection class:II
Rated ambient temperature according to IEC62722-2-1:-20 - 40 °C
Height/Depth:35.0 mm
Voltage type:AC
Nominal voltage:220 - 240 V
Max. System power:4.00 W
Luminaire luminous efficacy:75 lm/W
Power factor:0.80
With control gear:yes
Control gear:LED control gear current-controlled
Number of poles:2
Type of wiring:suitable for through-wiring
With light source:yes
Light source:LED not replaceable
Light emission:direct
Light distribution:symmetrical
Light distributor:Focus lens
Housing colour:white
Housing material:aluminum
Suitable for surface mounting:yes
Suitable for ceiling mounting:yes
Photobiological safety in accordance with EN 62471:RG1
Weight:0.2
Weight unit:KG
Outer diameter:81.00 mm
Suitable for recessed mounting:yes
Luminous flux:300 lm
Rated service life L70/B50 at 25 °C:50000 h
Dimming trailing edge:yes
Dimming leading edge:yes
Replaceable Operating device:yes
Installation diameter:68 mm
Installation height/depth:35.0 mm
Reflector:without
Socket:without
Surface:powder-coated
Adjustability:pivoting
Max. number of lights circuit breaker C16:480
Max. Number of lights circuit breaker B16:376
Short description:SPOT AIR ADJUST 4W 927 DIM IP23 WT

Characteristics

HABSP AIR ADJ P 4W 927 DIM IP23 WT
ManufacturerLEDVANCE Osram
HAN4099854000003
GTIN4099854000003
Type of wiringSuitable for through wiring
Replaceable operating deviceYes
Outer diameter81.00 mm
Rated lifetime L70/B50 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-1300lm
Rated ambient temperature according to IEC62722-2-1-20 - 40 °C
Operating deviceLED control gear current controlled
Dimming trailing edgeYes
Dimming phase controlYes
Installation diameter68 mm
Installation height/depth35.0 mm
Color consistency (McAdam ellipse)SDCM3
Color temperature2700K
Color rendering index CRI90-100
VersionWithout
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for flush mountingYes
Housing colorWhite
Weight0,2
Weight unit kg
Height/Depth35.0 mm
Short descriptionSPOT AIR ADJUST 4W 927 DIM IP23 WT
Power factor0.80
Luminaire luminous efficacy75lm/W
LampsLED not replaceable
Light emissionDirect
Luminous flux300lm
Light distributorFocus lens
Light distributionSymmetrical
Max. number of luminaires Circuit breaker B16376
Max. number of luminaires Circuit breaker C16480
Max. system performance4.00W
With operating deviceYes
With light sourceYes
Nominal voltage220 - 240V
SurfacePowder coated
Photobiological safety according to EN 62471RG1
Number of poles2
ReflectorWithout
Impact resistanceIK03
IP protection)IP23
Protection classII
Voltage typeAC
AdjustabilitySwiveling
Housing materialAluminum
