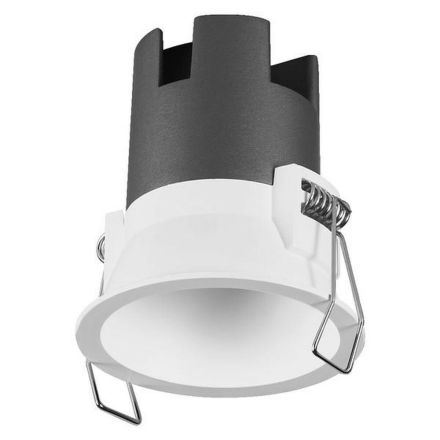

LEDVANCE Osram 4099854089022 SPOT TWIST 70MM 5W 830 WT WT LED recessed ceiling spotlight

LEDVANCE Osram 4099854089022 SPOT TWIST 70MM 5W 830 WT WT LED recessed ceiling spotlight

In stock

SKU: 1063606

Price on request

€15.04

€0

Overview

Recessed spotlights with integrated LEDs. Product features: Springs with soft silicone coating. Product advantages: Energy savings of up to 90% compared to halogen lamp spotlights. Easy installation and electrical connection thanks to tool-free connection terminals. Areas of application: Indoor applications. General lighting. Technical equipment: Connection box not included.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	400 lm
Color temperature:	3000 K
Color rendering index CRI:	80-89
Color consistency (McAdam ellipse):	SDCM6
Protection class (IP):	IP20
Impact resistance:	IK02
Protection class:	II
Rated ambient temperature according to IEC62722-2-1:	-10 - 45 °C
Length:	70.00 mm
Width:	70.00 mm
Height/Depth:	77.00 mm
Voltage type:	AC
Rated voltage:	220 - 240 V
Max. System power:	5.00 W
Luminaire luminous efficacy:	80 lm/W
Power factor:	0.5
With control gear:	yes
Control gear:	EVG
Number of poles:	2
Type of wiring:	Termination
With light source:	yes
Light source:	LED not replaceable
Light emission:	direct
Light distribution:	symmetrical
Light distributor:	other
Housing color:	white
Housing material:	aluminum
Suitable for ceiling mounting:	yes
Photobiological safety according to EN 62471:	RG1
Weight:	0.16
Weight unit:	KG
Outer diameter:	70.00 mm
Reflector:	matt
Surface:	untreated
Luminous intensity:	1150 cd
Suitable for recessed mounting:	yes
Light color:	white
Adjustability:	not adjustable
IFTTT support available:	yes
Luminous flux:	400 lm
Rated service life L70/B50 at 25 °C:	30000 h
Without Dimming function:	yes
Max. number of lights circuit breaker C16:	250
Max. Number of lights circuit breaker B16:	250
Installation diameter:	65 mm
Short description:	LED SPOT RECESS TWIST PRO 70mm 5W 3000K White White
Socket:	without
Installation width:	65 mm
Installation length:	65 mm
Nominal current:	50,000 mA
Energy efficiency class of the light source according to EU Directive 2019/2015:	G
Installation height/depth:	100 mm

Characteristics

HABSPOT TWIST 70MM 5W 830 WT WT

Manufacturer

HAN4099854089022

GTIN4099854089022

Type of wiringDiploma

Outer diameter70.00 mm

Rated lifetime L70/B50 at 25 °C30000 hours

Rated luminous flux according to IEC 62722-2-1400lm

Rated ambient temperature according to IEC62722-2-1-10 - 45 °C

Operating deviceElectronic ballast

Width70.00 mm

Installation width65 mm

Installation diameter65 mm

Installation height/depth100 mm

Installation length65 mm

Energy efficiency class of the light source according to EU Directive 2019/2015G

Color consistency (McAdam ellipse)SDCM6

Color temperature

Color rendering index CRI80-89

VersionWithout

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Housing colorWhite

Weight0,16

Weight unit kg

Height/Depth77.00 mm

IFTTT support availableYes

Short descriptionLED SPOT RECESS TWIST PRO 70 mm 5W 3000K White White

Power factor0.5

Luminaire luminous efficacy80lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux400lm

Light intensity1150 cd

Light distributorOther

Light distributionSymmetrical

Length70.00 mm

Max. number of luminaires Circuit breaker B16250

Max. number of luminaires Circuit breaker C16250

Max. system performance5.00W

With operating deviceYes

With light sourceYes

Nominal voltage

Rated current50,000mA

SurfaceUntreated

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles2

ReflectorFrosted

Impact resistanceIK02

IP protection)IP20

Protection classII

Voltage type

AdjustabilityNot adjustable

Housing materialAluminum

LEDVANCE Osram 4099854089022 SPOT TWIST 70MM 5W 830 WT WT LED recessed ceiling spotlight

Price on request

€15.04

€0

Into a basketIn the basketGo
