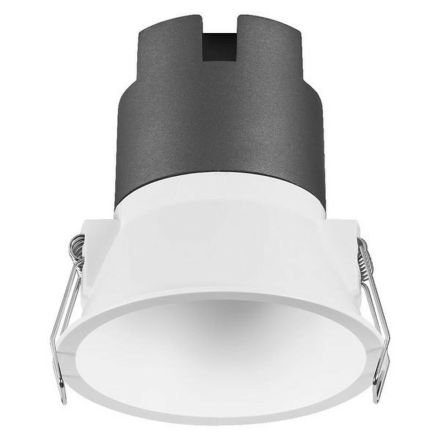

LEDVANCE Osram 4099854089206 SPOT TWIST 93MM 10W 840 WT WT LED recessed ceiling spotlight

LEDVANCE Osram 4099854089206 SPOT TWIST 93MM 10W 840 WT WT LED recessed ceiling spotlight

In stock

SKU: 1063615

Price on request

€17.23

€0

Overview

Recessed spotlights with integrated LEDs. Product features: Springs with soft silicone coating. Product advantages: Energy savings of up to 90% compared to halogen lamp spotlights. Easy installation and electrical connection thanks to tool-free connection terminals. Areas of application: Indoor applications. General lighting. Technical equipment: Connection box not included.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	800 lm
Color temperature:	4000 K
Color rendering index CRI:	80-89
Color consistency (McAdam ellipse):	SDCM6
Protection class (IP):	IP20
Impact resistance:	IK02
Protection class:	II
Rated ambient temperature according to IEC62722-2-1:	-10 - 45 °C
Length:	93.00 mm
Width:	93.00 mm
Height/Depth:	94.00 mm
Voltage type:	AC
Rated voltage:	220 - 240 V
Max. System power:	10.00 W
Luminaire luminous efficacy:	80 lm/W
Power factor:	0.5
With control gear:	yes
Control gear:	EVG
Number of poles:	2
Type of wiring:	Termination
With light source:	yes
Light source:	LED not replaceable
Light emission:	direct
Light distribution:	symmetrical
Light distributor:	other
Housing color:	white
Housing material:	aluminum
Suitable for ceiling mounting:	yes
Photobiological safety according to EN 62471:	RG1
Weight:	0.21
Weight unit:	KG
Outer diameter:	93.00 mm
Reflector:	matt
Surface:	untreated
Luminous intensity:	2500 cd
Suitable for recessed mounting:	yes
Light color:	white
Adjustability:	not adjustable
IFTTT support available:	yes
Luminous flux:	800 lm
Rated service life L70/B50 at 25 °C:	30000 h
Without Dimming function:	yes
Max. number of lights circuit breaker C16:	120
Max. Number of lights circuit breaker B16:	120
Installation diameter:	85 mm
Short description:	LED SPOT RECESS TWIST PRO 93mm 10W 4000K White White
Socket:	without
Installation width:	85 mm
Installation length:	85 mm
Nominal current:	100,000 mA
Energy efficiency class of the light source according to EU Directive 2019/2015:	G
Installation height/depth:	100 mm

Characteristics

HABSPOT TWIST 93MM 10W 840 WT WT

Manufacturer

HAN4099854089206

GTIN4099854089206

Type of wiringDiploma

Outer diameter93.00 mm

Rated lifetime L70/B50 at 25 °C30000 hours

Rated luminous flux according to IEC 62722-2-1800lm

Rated ambient temperature according to IEC62722-2-1-10 - 45 °C

Operating deviceElectronic ballast

Width93.00 mm

Installation width85 mm

Installation diameter85 mm

Installation height/depth100 mm

Installation length85 mm

Energy efficiency class of the light source according to EU Directive 2019/2015G

Color consistency (McAdam ellipse)SDCM6

Color temperature

Color rendering index CRI80-89

VersionWithout

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Housing colorWhite

Weight0,21

Weight unit kg

Height/Depth94.00 mm

IFTTT support availableYes

Short descriptionLED SPOT RECESS TWIST PRO 93 mm 10W 4000K White White

Power factor0.5

Luminaire luminous efficacy80lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux800lm

Light intensity2500 cd

Light distributorOther

Light distributionSymmetrical

Length93.00 mm

Max. number of luminaires Circuit breaker B16120

Max. number of luminaires Circuit breaker C16120

Max. system performance10.00 W

With operating deviceYes

With light sourceYes

Nominal voltage

Rated current100,000mA

SurfaceUntreated

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles2

ReflectorFrosted

Impact resistanceIK02

IP protection)IP20

Protection classII

Voltage type

AdjustabilityNot adjustable

Housing materialAluminum
