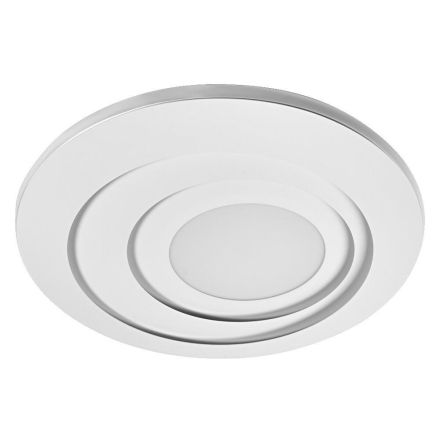

LEDVANCE Osram 4099854093203 ORBIS SPIRAL RD CL 505MM 42W 830 WT LED ceiling light

LEDVANCE Osram 4099854093203 ORBIS SPIRAL RD CL 505MM 42W 830 WT LED ceiling light

In stock

SKU: 1063812

Price on request

€120.42

€0

Overview

LED ceiling lights made of metal in an elegant design. Product features: Decorative home lighting. Ceiling light with advanced LED technology. Product advantages: Very homogeneous light. Elegant design. Areas of application: Indoor applications. Kitchen, living room, children's room or study.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	2400 lm
Color temperature:	3000 K
Color rendering index CRI:	80-89
Color consistency (McAdam ellipse):	SDCM6
Protection rating (IP):	IP20
Protection class:	II
Rated ambient temperature according to IEC62722-2-1:	-20 - 40 °C
Height/Depth:	60.00 mm
Voltage type:	AC
Nominal voltage:	220 - 240 V
Max. System power:	42.00 W
Luminaire luminous efficacy:	57 lm/W
Power factor:	0.90
With control gear:	yes
Control gear:	EVG
Connection type:	Screw terminal
Number of poles:	2
Type of wiring:	Termination
With light source:	yes
Light source:	LED not replaceable
Light emission:	direct
Housing colour:	white
Suitable for surface mounting:	yes
Suitable for ceiling mounting:	yes
Photobiological safety in accordance with EN 62471:	RG0
Weight:	4.56
Weight unit:	KG
Outer diameter:	505.00 mm
Socket:	other
Version of Grid:	matt
Nominal current:	175,000 mA
Light color:	white
IFTTT support available:	yes
Rated service life L70/B50 at 25 °C:	30,000 h
Without dimming function:	yes
Max. number of lights circuit breaker C16:	73
Max. Number of lights circuit breaker B16:	66
Short description:	ORBIS SPIRAL MAIN AND SIDE LIGHT 505 mm 42 W White

Characteristics

HABORBIS SPIRAL RD CL 505MM 42W 830 WT

Manufacturer

HAN4099854093203

GTIN4099854093203

Connection typeScrew terminal

Type of wiringDiploma

Execution of the gridFrosted

Outer diameter505.00 mm

Rated lifetime L70/B50 at 25 °C30000 hours

Rated luminous flux according to IEC 62722-2-12400lm

Rated ambient temperature according to IEC62722-2-1-20 - 40 °C

Operating deviceElectronic ballast

Color consistency (McAdam ellipse)SDCM6

Color temperature

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Housing colorWhite

Weight4,56

Weight unit kg

Height/Depth60.00 mm

IFTTT support availableYes

Short descriptionORBIS SPIRAL MAIN AND SIDE LIGHT 505 mm 42W White

Power factor0.90

Luminaire luminous efficacy57lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Max. number of luminaires Circuit breaker B1666

Max. number of luminaires Circuit breaker C1673

Max. system performance42.00W

With operating deviceYes

With light sourceYes

Nominal voltage

Rated current175,000mA

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles2

IP protection)IP20

Protection classII

Voltage type

LEDVANCE Osram 4099854093203 ORBIS SPIRAL RD CL 505MM 42W 830 WT LED ceiling light

Price on request

€120.42

€0
