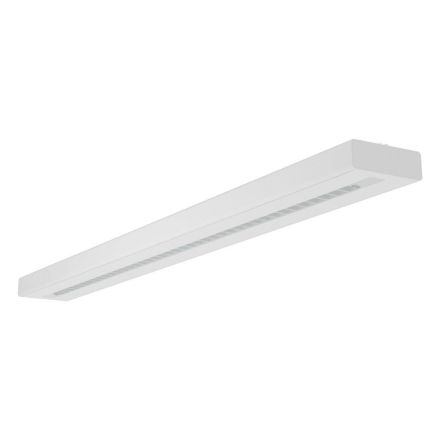

LEDVANCE Osram 4099854135491 LN INV D 1500 P 52W 940 PS WT LED ceiling light

In stock
SKU: 1063602
€245.71
Into a basketIn the basketGo

Overview

Surface-mounted luminaire for single or strip office applications with CRI90 and selectable wattage setting (Power Select - PS), 1500 mm. Product features: Minimalist LEDVANCE SCALE design in an extruded aluminum housing. Contains EVERLOOP: Convenient replacement of light source and LED driver. Can be connected to a seamless strip light with accessories (surface-mounted or suspended mounting). Suspended mounting with suspension set (to be ordered separately). Glow wire test according to IEC 60695-2-12: 850 °C. 5-pin connection terminal, cable cross-section up to 5 x 2.5 mm. Service life (L80/B10): 70,000 h (at 25 °C). Product advantages: Easy upgradeability of light source and driver (EVERLOOP design). Homogeneous light distribution and reduced glare (UGR 19) thanks to IndiviLED® optics. High technical performance with CRI90 and up to 130 lm/W. Very versatile thanks to a selectable wattage setting on the driver (Power Select - PS). Symmetrical and asymmetrical light distribution for a wide range of applications. High color consistency with SDCM 3. Easy installation. Low-flicker light thanks to special electronic ballast. Diverse installation options thanks to different accessories. 5-year guarantee. Areas of application: Direct replacement for luminaires with fluorescent lamps. Offices, educational institutions, public institutions. Individual application or in combination as a light strip. Direct lighting. Technical equipment: Suspension set available for pendant version (to be ordered separately). Inline, corner and infill connectors available as separate accessories. Through-wiring set available.

PropertyValue
Rated luminous flux according to IEC 62722-2-1:6550 lm
Color temperature:4000 K
Color rendering index CRI:90-100
Color consistency (McAdam ellipse):SDCM3
Protection class (IP):IP20
Impact resistance:IK06
Protection class:I
Rated ambient temperature according to IEC62722-2-1:-20 - 50 °C
Length:1475.00 mm
Width:125.00 mm
Height/Depth:43.00 mm
Voltage type:AC
Rated voltage:220 - 240 V
Max. System power:52.00 W
Luminaire luminous efficacy:126 lm/W
Power factor:0.90
With control gear:yes
Control gear:EVG
Connection type:Plug-in terminal
Number of poles:5
Type of wiring:suitable for through-wiring
With Light source:yes
Light emission:direct
Light distributor:Focus lens
Housing color:white
Housing material:aluminum
Suitable for surface mounting:yes
Suitable for ceiling mounting:yes
Suitable for pendant suspension:yes
Photobiological safety according to EN 62471:RG0
Weight:3.96
Weight unit:KG
Grid design:other
Nominal current:240,000 mA
Light color:white
IFTTT support available:yes
Rated service life L70/B50 at 25 °C:100,000 h
Without dimming function:yes
Max. Number of lights circuit breaker C16:38
Max. number of lights circuit breaker B16:23
Adjustable luminous flux:Levels
Replaceable operating device:yes
Surface protection housing:powder-coated
Brief description:LINEAR INDIVILED DIRECT 1500 PS 1500 P 52W 940 PS WT

Characteristics

HABLN INV D 1500 P 52W 940 PS WT
ManufacturerLEDVANCE Osram
HAN4099854135491
GTIN4099854135491
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Execution of the gridOther
Replaceable operating deviceYes
Rated lifetime L70/B50 at 25 °C100000 hours
Rated luminous flux according to IEC 62722-2-16550lm
Rated ambient temperature according to IEC62722-2-1-20 - 50 °C
Operating deviceElectronic ballast
Width125.00 mm
Color consistency (McAdam ellipse)SDCM3
Color temperature4000K
Color rendering index CRI90-100
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for pendulum suspensionYes
Housing colorWhite
Weight3,96
Weight unit kg
Height/Depth43.00 mm
IFTTT support availableYes
Short descriptionLINEAR INDIVILED DIRECT 1500HP 1500P 52W 940HP WT
Power factor0.90
Luminaire luminous efficacy126lm/W
Light emissionDirect
Light colorWhite
Luminous flux adjustableStages
Light distributorFocus lens
Length1475.00 mm
Max. number of luminaires Circuit breaker B1623
Max. number of luminaires Circuit breaker C1638
Max. system performance52.00W
With operating deviceYes
With light sourceYes
Nominal voltage220 - 240V
Rated current240,000mA
Surface protection housingPowder coated
Without dimming functionYes
Photobiological safety according to EN 62471RG0
Number of poles5
Impact resistanceIK06
IP protection)IP20
Protection classI
Voltage typeAC
Housing materialAluminum
