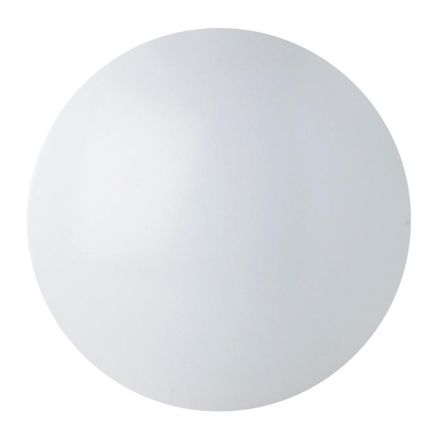

Megaman MM77121 MM RENZO+CCT 330mm 15W 1400lm 830+840 LED wall/ceiling light

Megaman MM77121 MM RENZO+CCT 330mm 15W 1400lm 830+840 LED wall/ceiling light

In stock

SKU: 733045

Price on request

€34.81

€0

Overview

Renzo surface-mounted light with integrated LEDs. With a protection rating of IP44, this light is suitable for indoor use as well as for weather-protected outdoor use. It impresses with its very even illumination. Furthermore, this light is suitable for 180 - 260V AC/DC and can be switched using suitable motion detectors. The Renzo surface-mounted light is available in four different diameters and two light colors. Can also be used for through-wiring (2 cable entries). Can be equipped with an emergency power module (MM77129) or HF sensor (MM77128). It also has features such as Colorselect and/or Multilumen.

Property	Value
System power:	15 W
Luminous flux:	1400 lm
Height/depth:	110 mm
Protection type (IP):	IP44
Protection class:	II
Nominal voltage:	180 to 260 V
Housing color:	white
Housing material:	plastic
Color temperature:	3000 to 4000 K
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Outer diameter:	330 mm
Voltage type:	AC/DC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED not replaceable
Connection type:	Plug terminal
With operating device:	yes
Material of Cover:	Opal plastic
Light distributor:	Diffuser lens/optics/panel
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	not required
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for Light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	yes
Design of the grid:	without
Dimming DMX:	no
Dimming DSI:	no
Dimming LineSwitch:	no
Dimming Potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Luminous efficacy:	93 lm/W
Power factor:	0.9
Type of wiring:	suitable for through wiring
Number of poles:	3
Replaceable operating device:	no
Dimming DALI-2:	no
Color consistency (McAdam ellipse):	SDCM6
Emergency power supply integrated:	no
Constant luminous flux control:	no
Color temperature adjustable:	levels
Luminous flux adjustable:	levels
Beam angle adjustable:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABMM RENZO+CCT 330mm 15W 1400lm 830+840

Manufacturer

HANMM77121

GTIN4020856771219

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Beam angle adjustableNo

Replaceable operating deviceNo

Outer diameter330 mm

Operation via BluetoothNo

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM6

Color temperature

Color temperature adjustableStages

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionNo

Housing colorWhite

Height/Depth110 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.9

Luminaire luminous efficacy93lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1400lm

Luminous flux adjustableStages

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage

Emergency power supply integratedNo

Without dimming functionYes

Number of poles3

IP protection)IP44

Protection classII

Voltage type

System performance15W

Cover materialPlastic opal

Housing materialPlastic
