RZB 312237.002.1.76 Less is more 21 17W 4 LED ceiling light

RZB 312237.002.1.76 Less is more 21 17W 4 LED ceiling light

In stock

SKU: 532025

Price on request

€248.78

€0

Overview

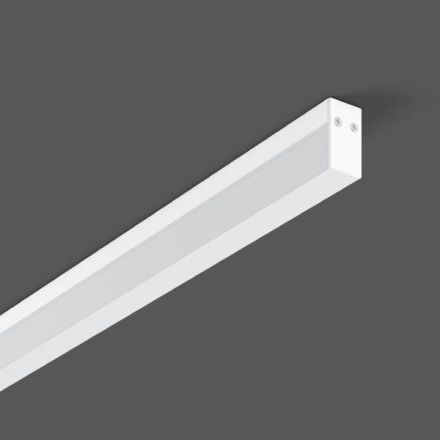

LED light in a minimalist design with three-sided light emission. Profile surface made of anodized or white aluminum. LED service life 60,000 hours (L80, B10). Light output up to 102 lm/W. Diffuser made of non-yellowing plastic (PMMA), opal. As aesthetically sophisticated general lighting (corridors, hotels, shops, private areas) or accent lighting. Color tolerance: 3-fold MacAdam (3 SDCM). Housing made of powder-coated extruded aluminum profile. End caps made of powder-coated aluminum. Diffuser made of opal plastic (PMMA). External control gear. With connecting cable between light and control gear. Light source (LED) included in delivery. Energy efficiency class A++

Property	Value
Max. System power:	17 W
Rated luminous flux according to IEC 62722-2-1:	1700 lm
Suitable for number of lamps:	1
Length:	1008 mm
Width:	21 mm
Height/depth:	36 mm
Protection rating (IP):	IP20
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	4000 K
Impact resistance:	IK00
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	60000 h
Suitable for wall mounting:	yes
Voltage type:	AC/DC
With motion detector:	no
Beam angle:	free beam/diffuse
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
With operating device:	yes
Cover material:	opal plastic
Light distributor:	without
Without dimming function:	no
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device voltage-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device-integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	yes
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	17 W
Luminaire luminous efficacy:	100 lm/W
Power factor:	0.95
Wiring type:	Termination
Number of poles:	4
Conductor cross-section:	1.50 mm²

Characteristics

HABLess is more 21 17W 4

Manufacturer

HAN312237.002.1.76

GTIN4051859235415

Covering the luminaire with thermal insulation material possibleYes

Type of wiringDiploma

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Rated lifetime L80/B10 at 25 °C60000 hours

Rated luminous flux according to IEC 62722-2-11700lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear voltage controlled

Suitable for computer workstations according to EN 12464-1No

Width21 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power17 W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth36 mm

Power factor0.95

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy100lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Length1008 mm

Max. system performance17 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage

Without dimming functionNo

Number of poles4

Impact resistanceIK00

IP protection)IP20

Protection class (NEMA)Other

Protection classII

Voltage type

Cover materialPlastic opal

Housing materialAluminum
