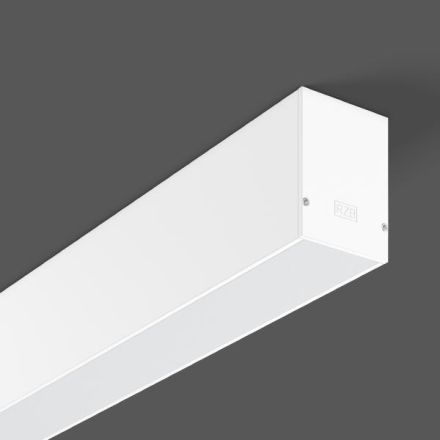

RZB 312305.002 Less is more 50 22W 3000K 8 LED ceiling light

RZB 312305.002 Less is more 50 22W 3000K 8 LED ceiling light

In stock

SKU: 534447

Price on request

€229.90

€0

Overview

Improved efficiency, up to 130 lm/W. Integrated control gear. Optimized design. Replaceable and removable LED unit. LED service life 50,000 h (L80, B10). Diffuser made of non-yellowing plastic (PMMA), opal or Alea Optik System. Low-beam design. Alea Optik System ideal for office areas (UGR 19) and computer workstations (BAP) in accordance with DIN EN 12464-1. Color tolerance: 3-fold MacAdam (3 SDCM). Housing made of powder-coated extruded aluminum profile. End caps made of powder-coated aluminum. Diffuser made of non-yellowing plastic (PMMA), opal. Replaceable and removable LED unit with integrated control gear. Energy efficiency class A++

Property	Value
Max. System power:	22 W
Rated luminous flux according to IEC 62722-2-1:	2300 lm
Suitable for number of lamps:	3
Length:	847 mm
Width:	57 mm
Height/depth:	75 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	no
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam>80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 30 °C
Socket:	other
Connection type:	plug-in terminal
With operating device:	yes
Material of Cover:	Plastic opal
Light distributor:	without
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for Light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent on operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	22 W
Luminaire luminous efficacy:	105 lm/W
Power factor:	0.90
Wiring type:	Termination
Number of poles:	3
Conductor cross-section:	1.50 mm²

Characteristics

HABLess is more 50 22W 3000K 8

Manufacturer

HAN312305.002

GTIN4051859278603

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-12300lm

Rated ambient temperature according to IEC62722-2-1-20 to 30 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width57 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power22W

Suitable for number of lamps3

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth75 mm

Power factor0.90

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy105lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Length847 mm

Max. system performance22W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage

Without dimming functionYes

Number of poles3

Impact resistanceIK03

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage type

Cover materialPlastic opal

Housing materialAluminum
