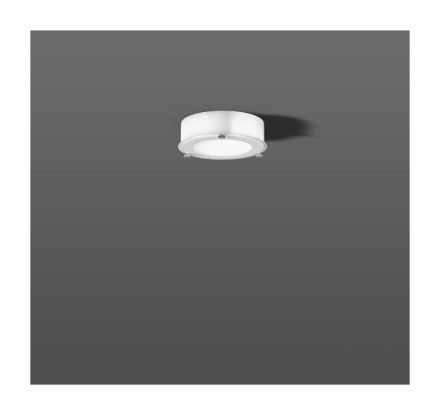

RZB 901630.002.1 Toledo 9W 4000K D202 H65 for fabric LED ceiling light

RZB 901630.002.1 Toledo 9W 4000K D202 H65 for fabric LED ceiling light

In stock

SKU: 530152

Price on request

€96.46

€0

Overview

Decorative fabric lampshade for interior design. The basic lamp for the fabric lampshades is the Toledo Flat series. Over 70 different standard colors of the fabric lampshade to choose from. Standard shapes are cylinder and cuboid. Material of the fabric lampshade: chintz or optionally also flame-retardant fabric in accordance with B1. Fabric lampshade can be retrofitted to the base lamp without tools. Optional satin-finished cover panels made of polycarbonate available. Energy-efficient decorative lamp thanks to LED fittings. LED service life 50,000 h (L70, B10). Color rendering Ra > 80. Color tolerance: 4-fold MacAdam (4 SDCM). DALI converter suitable for direct current, suitable for central emergency power supply. Ceiling or pendant mounting. Cylindrical housing made of powder-coated sheet steel. Cover ring made of powder-coated die-cast aluminum. Light guide and plastic cover made of non-yellowing plastic (PMMA). Cover made of opal matt plastic. With fastening system for fabric lampshades. LED converter included in delivery. Light source (LED) included. Energy efficiency class A+

Property	Value
Max. System power:	7.70 W
Rated luminous flux according to IEC 62722-2-1:	660 lm
Suitable for number of lamps:	1
Height/depth:	65 mm
Protection rating (IP):	IP40
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Material of the Housing:	Aluminum
Color temperature:	4000 K
Impact resistance:	IK06
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	no
Outer diameter:	202 mm
Voltage type:	AC
With motion detector:	no
Beam angle:	wide beam 41-80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	-20 to 35 °C
Socket:	other
Connection type:	screw terminal
With control gear:	yes
Cover material:	opal plastic
Light distributor:	without
Without Dimming function:	yes
Light emission:	direct/indirect
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
Dimming DMX:	no
Dimming DSI:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (integrated in the device):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	7.70 W
Luminaire luminous efficacy:	86 lm/W
Power factor:	0.50
Wiring type:	Termination
Number of poles:	2
Conductor cross-section:	1.50 mm²

Characteristics

HABToledo 9W 4000K D202 H65 for fabric

Manufacturer

HAN901630.002.1

GTIN4051859187707

Covering the luminaire with thermal insulation material possibleYes

Connection typeScrew terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angleWide beam 41-80°

Outer diameter202 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-1660lm

Rated ambient temperature according to IEC62722-2-1-20 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power7.70W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth65 mm

Power factor0.50

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy86lm/W

LampsLED not replaceable

Light emissionDirect/indirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. system performance7.70W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage

Without dimming functionYes

Number of poles2

Impact resistanceIK06

IP protection)IP40

Protection class (NEMA)Other

Protection classII

Voltage type

Cover materialPlastic opal

Housing materialAluminum
