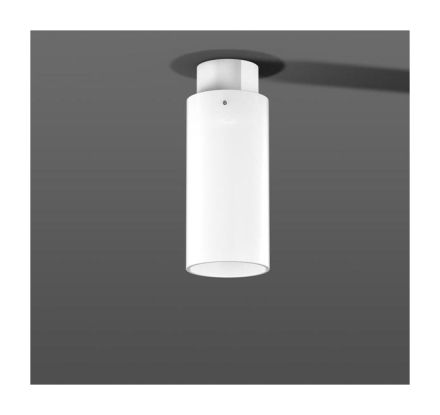

RZB 931175.002 12W 3000K D120 H300 white LED ceiling light

RZB 931175.002 12W 3000K D120 H300 white LED ceiling light

In stock

SKU: 531663

Price on request

€253.02

€0

Overview

ceiling-mounted light for interiors, designed in a distinctly clear design language. Hand-blown three-layer opal glass (triplex glass), satin finish. The triplex glass ensures particularly homogeneous, soft and glare-free light. LED service life 50,000 hours (L80, B10). Powder-coated aluminum fitting. Diffuser made of opal glass, satin finish, hand-blown. Glass attached with screws. Energy efficiency class A++

Property	Value
Max. System power:	9.50 W
Rated luminous flux according to IEC 62722-2-1:	1200 lm
Suitable for number of lamps:	4
Height/depth:	300 mm
Protection rating (IP):	IP20
Protection class:	I
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	230 V
Housing color:	white
Material of the Housing:	Aluminum
Color temperature:	3000 K
Impact resistance:	IK02
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	50000 h
Suitable for wall mounting:	no
Outer diameter:	120 mm
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam>80°
With light source:	yes
Light source:	LED not replaceable
Rated ambient temperature according to IEC62722-2-1:	25 °C
Socket:	other
Connection type:	plug-in terminal
With control gear:	yes
Cover material:	opal glass
Light distributor:	without
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	no
Suitable for Surface mounting:	yes
Suitable for emergency lighting:	no
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	yes
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (integrated in the device):	no
0-10 V dimming:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	no
Protection class (NEMA):	other
Glow wire test according to IEC 60695-2-11:	960 °C - 30 s
Suitable for lamp power:	9.50 W
Luminous efficacy:	127 lm/W
Power factor:	0.54
Wiring type:	Termination
Number of poles:	3
Conductor cross-section:	1.50 mm²

Characteristics

HAB12W 3000K D120 H300 white

Manufacturer

HAN931175.002

GTIN4051859091790

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Outer diameter120 mm

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11200lm

Rated ambient temperature according to IEC62722-2-125°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power9.50W

Suitable for number of lamps4

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11960 °C - 30 s

Height/Depth300 mm

Power factor0.54

Conductor cross-section1.50 mm²

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy127lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorWithout

Light distributionSymmetrical

Max. system performance9.50W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage

Without dimming functionYes

Number of poles3

Impact resistanceIK02

IP protection)IP20

Protection class (NEMA)Other

Protection classI

Voltage type

Cover materialGlass opal

Housing materialAluminum
