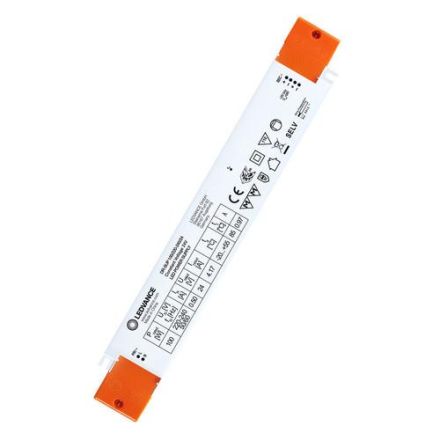

LEDVANCE Osram 4058075437821 DR-SUP-100/220-240/24 10X1 LED control gear

In stock
SKU: 766072
€33.25
Into a basketIn the basketGo

Overview

Constant voltage LED driver with long service life. Product features: Available in 30 W, 60 W, 100 W and 200 W. Integrated cable clamp for independent installation. Service life: up to 60,000 h (at max. tc temperature). Protection class: IP20. Low ripple current < 5%. Supply voltage: 220,240 V. Operating frequency: 50/60 Hz. Operation with less than 60 V: safety extra-low voltage (SELV). Reversible overtemperature, overload, short circuit and operating current protection. Product advantages: Optimized for operation with 24 V flexible LED strip lights. Proven, long service life at maximum permissible temperatures. 5-year guarantee. Maintenance-free operation and minimal installation costs. Quick and easy installation. High efficiency and reliability. Areas of application: Cove lighting, even in confined spaces. Wallwasher effect lighting in living rooms, dining rooms, bedrooms, entrance areas. Offices, shopping centers, hospitals, restaurants, hotels. For SELV installations indoors.

PropertyValue
Protection type (IP):IP20
Protection class:II
Length:298.00 mm
Width:43.00 mm
Height:30.00 mm
Design:static
Housing:Plastic housing
Suitable for outdoor use:no
Suitable for constant voltage:yes
Suitable for Constant current:no
Suitable for direct current (primary side):no
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DSI:no
Dimming DMX:no
Dimming Potentiometer (device-integrated):no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:yes

Characteristics

Suitable for constant currentNo
Suitable for constant voltageYes
Suitable for direct voltage (primary side)No
HABDR-SUP-100/220-240/24 10X1
ManufacturerLEDVANCE Osram
HAN4058075437821
GTIN4058075437821
VersionStatic
Width43.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Suitable for outdoor useNo
HousingPlastic housing
Height30.00 mm
Length298.00 mm
Without dimming functionYes
IP protection)IP20
Protection classII
