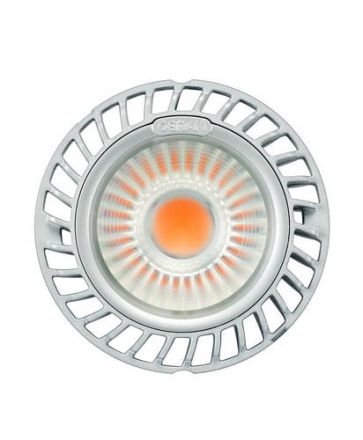

LEDVANCE Osram 4052899541511 PL-CN111-COB-2800-830-24D-G1 12X1 LED module

In stock
SKU: 732704
€59.06
Into a basketIn the basketGo

Overview

Product family advantages: Compact design. Compatible with conventional AR111 lamps. High color temperature consistency across the entire module. Multi-shadow-free lighting thanks to a single light source. 5 year guarantee. Product family properties: Consistent white light: 3 SDCM (threshold unit). Color rendering index Ra: 80 and 90. Luminous flux: 1,800 - 4,800 lm (depending on model). Beam angle: 15 (on request), 24, 40, 60. Max. operating voltage: 60 V (may only be used with SELV LED control gear). Areas of application: Sales rooms. Shop lighting. Restaurants. Gastronomy. Museums, galleries.

PropertyValue
Lamp wattage:25.90 W
Color temperature:3000 K
Luminous flux:2490 lm
Energy efficiency class:A+
Protection class (IP):IP20
Beam angle:24 °
Length:500 mm
Width:111.0 mm
Height:52.0 mm
Shape:round
Color:white
Operating voltage:37 V
Average nominal service life:50000 h
Suitable for traffic information board signaling:no
Suitable for traffic lights:no
Suitable for variable message signs:no
Connection type:other
Suitable for rail traffic:no
Number of LEDs:1
Diameter:111.0 mm
Luminous intensity:14500 cd
Suitable for constant current:yes
Suitable for general lighting:yes
Suitable for constant voltage:no
External operating device required:yes
Voltage type:DC
Operating current:700 mA
Lamp voltage:37 V
Light color according to EN 12464-1:warm white <3300K

Characteristics

Suitable for constant currentYes
Suitable for constant voltageNo
Operating voltage37 V
HABPL-CN111-COB-2800-830-24D-G1 12X1
ManufacturerLEDVANCE Osram
HAN4052899541511
GTIN4052899541511
Connection typeOther
Beam angle24°
Width111.0 mm
Diameter111.0 mm
Energy efficiency classA+
ColorWhite
Color temperature3000K
ShapeAround
Height52.0 mm
Lamp power25.90W
Lamp voltage37V
Luminous flux2490lm
Light intensity14500 cd
Length500 mm
Average nominal life50000 hours
IP protection)IP20
Voltage typeDC
