Megaman Dim. RICO HR IP44 36° WH 9W 700lm 928 LED recessed ceiling spotlight

Megaman Dim. RICO HR IP44 36° WH 9W 700lm 928 LED recessed ceiling spotlight

In stock

SKU: 525127

Price on request

€25.58

€0

Overview

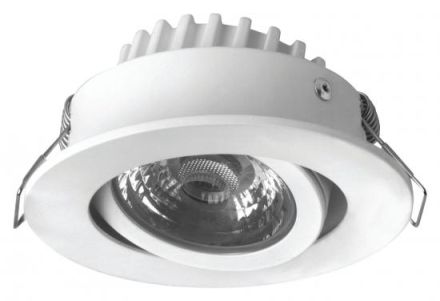

Rico HR recessed spotlight with integrated LEDs. This recessed spotlight impresses with its very flat installation depth of just 30mm and a standard installation diameter of 68mm. Thanks to hybrid reflector technology/optics, these recessed spotlights look like halogen lamps. Thanks to the constant current control, this recessed spotlight can be dimmed very flexibly, depending on the driver (leading edge & trailing edge, DALI, DSI, 1-10V, etc.). With a protection rating of IP44, this spotlight series is also suitable for use in weatherproof outdoor areas. This series is available with very high color rendering, as well as with the 'dim to WARM' technology.

Property	Value
System power:	9 W
Rated luminous flux:	700 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP44
Outer diameter:	80 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	III
With Light source:	yes
Installation height/depth:	30 mm
With control gear:	no
Suitable for recessed mounting:	yes
Height/depth:	30 mm
With motion detector:	no
Suitable for wall mounting:	no
Color temperature:	2800 K
Nominal voltage:	16 to 21 V
Color rendering index CRI:	90-100
Suitable for Ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Beam angle:	medium beam 21-40°
Reflector:	high-gloss
Luminous flux:	700 lm
Cover material:	structured plastic
Voltage type:	DC
Light color:	white
Suitable for Busbar mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Surface protection:	painted
Surface brushed:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	yes
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	yes
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	yes
Dimming leading edge:	yes
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without Dimming function:	no
Light distributor:	other
Light emission:	direct
Luminous intensity:	1650 cd
Wiring type:	termination
Power factor:	0.9
Luminous efficacy:	77.78 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Color consistency (McAdam ellipse):	SDCM6
Replaceable Operating device:	yes
DALI-2 dimming:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	levels
Beam angle adjustable:	no
Installation diameter:	68 mm
Integrated emergency power supply:	no
IFTTT support available:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
Item color:	white

Characteristics

Rated luminous flux700 lm

HABDim. RICO HR IP44 36° WH 9W 700lm 928

Manufacturer

HANMM76732

GTIN4020856767328

Type of wiringDiploma

Beam angleMedium beam 21-40°

Beam angle adjustableNo

Replaceable operating deviceYes

Outer diameter80 mm

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VYes

Dimming DALIYes

Dimming DALI-2No

Dimming DMXNo

Dimming DSIYes

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeYes

Dimming phase controlYes

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter68 mm

Installation height/depth30 mm

Color consistency (McAdam ellipse)SDCM6

Color temperature

Color temperature adjustableNo

Color rendering index CRI90-100

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorWhite

Height/Depth30 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.9

Luminaire luminous efficacy77.78lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux700lm

Luminous flux adjustableStages

Light intensity1650 cd

Light distributorOther

Light distributionSymmetrical

With operating deviceNo

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage

Emergency power supply integratedNo

Brushed surfaceNo

Surface protectionPainted

Without dimming functionNo

ReflectorHigh gloss

IP protection)IP44

Protection classIII

Voltage type

System performance9W

AdjustabilitySwiveling

Cover materialPlastic structured

Housing materialAluminum
