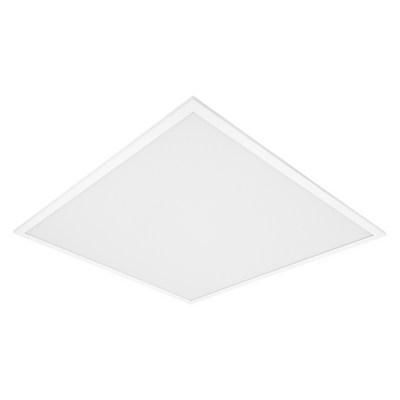

LEDVANCE Osram 4058075364547 BIOLUX HCL PL 600 ZB 43W 2700-6500K LED recessed luminaire

LEDVANCE Osram 4058075364547 BIOLUX HCL PL 600 ZB 43W 2700-6500K LED recessed luminaire

In stock

SKU: 732083

Price on request

€368.97

€0

Overview

Square insert light, Tunable White, Zigbee. Product features: Zigbee 3.0 certified Tunable White lights/LED strips for easy integration into partner systems. Ready to connect to BIOLUX HCL control unit. Color temperature adjustable via Tunable White: 2,700 - 6,500 K. Wireless communication between control unit and lights via Zigbee protocol. Very high color rendering index Ra: >90. Product advantages: Enables individual HCL lighting solutions in conjunction with compatible Zigbee HCL lighting controls. Biologically optimized lighting by adapting the artificial light to the natural course of daylight. 5-year BIOLUX HCL system guarantee when operated in a BIOLUX HCL system (BIOLUX HCL / VIVARES ZIGBEE control unit in conjunction with BIOLUX HCL luminaire(s) / BIOLUX HCL LED strips. Can support concentrated work. Good glare control (UGR 19). Areas of application: Lighting solution for up to 40 BIOLUX HCL luminaires / BIOLUX HCL LED strips combined with BIOLUX HCL control unit. Large-scale solution for up to 200 BIOLUX HCL luminaires combined with VIVARES ZIGBEE control unit. Hotel and office spaces with little daylight. Technical equipment: LEDVANCE BIOLUX app only required for commissioning (commissioning) of the BIOLUX HCL system (available for Android and iOS). LEDVANCE VIVARES app required for project planning and commissioning (commissioning) of the VIVARES ZIGBEE system (available for Android and iOS).

Property	Value
Max. System power:	43.00 W
Rated luminous flux according to IEC 62722-2-1:	4000 lm
Length:	595.0 mm
Width:	595.0 mm
Height/depth:	11.0 mm
Protection rating (IP):	IP20
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	2700 K
Impact resistance:	IK03
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	40000 h
Suitable for wall mounting:	no
Energy efficiency class of the built-in light source:	A++, A+, A (LED)
Voltage type:	AC
With motion detector:	no
With light source:	yes
Light source:	LED not replaceable
Connection type:	other
With control gear:	yes
Rated service life L70/B10 at 25 °C:	50000 h
Cover material:	Opal plastic
Light distributor:	Diffuser lens/optics/panel
Installation height/depth:	50.0 mm
Without dimming function:	no
Installation width:	575.0 mm
Light emission:	direct
With light sensor:	no
Operating device:	EVG
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	no
Suitable for emergency lighting:	no
Installation length:	575.0 mm
Design of the grid:	matt
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (device-integrated):	no
LED nominal current at constant current:	203 mA
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming Phase control:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	yes
Dimming with push button:	no
Dimming dependent on operating device:	yes
Rated service life L70/B50 at 25 °C:	50000 h
Rated service life L80/B50 at 25 °C:	40000 h
Rated service life L90/B10 at 25 °C:	25000 h
Rated service life L90/B50 at 25 °C:	25000 h
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	95 lm/W
Type of wiring:	Termination
Number of poles:	2

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

Rated service life L90/B10 at 25 °C25000 h

Rated service life L70/B10 at 25 °C50000 h

Rated service life L80/B50 at 25 °C40000 h

HABBIOLUX HCL PL 600 ZB 43W 2700-6500K

Manufacturer

HAN4058075364547

GTIN4058075364547

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Type of wiringDiploma

Execution of the gridFrosted

Rated lifetime L70/B50 at 25 °C50000 hours

Rated lifetime L80/B10 at 25 °C40000 hours

Rated luminous flux according to IEC 62722-2-14000lm

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1Yes

Width595.0 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeYes

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width575.0 mm

Installation height/depth50.0 mm

Installation length575.0 mm

Color temperature

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth11.0 mm

LED nominal current at constant current203mA

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy95lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Length595.0 mm

Max. system performance43.00W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage

Without dimming functionNo

Number of poles2

Impact resistanceIK03

IP protection)IP20

Protection classII

Voltage type

Cover materialPlastic opal

Housing materialAluminum
