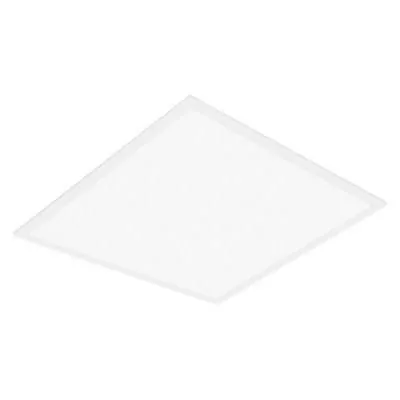

Square recessed luminaire with strong glare control, 600 x 600 mm. Product features: Lifespan (L70/B50): up to 50,000 hours (at 25 °C). Frame made of extruded aluminum. Polystyrene diffuser. Product advantages: Luminaire with good value for money. Good glare control (UGR 19). Low-flicker light thanks to special electronic ballast. Energy savings thanks to system light output of up to 100 lm/W. External driver for increased flexibility and easy installation. Versions with DALI electronic ballast available. Areas of application: Direct replacement for luminaires with fluorescent lamps. Office rooms, conference rooms. Reception areas, entrance areas, corridors, elevators. Suitable for ceiling recessed systems with a grid size of 600 x 600 mm. Technical equipment: Accessories for various installation options available. External ballast included. Safety clamps included.
| Property | Value |
| Max. System power: | 36.00 W |
| Rated luminous flux according to IEC 62722-2-1: | 3600 lm |
| Length: | 595.0 mm |
| Width: | 595.0 mm |
| Height/depth: | 35.0 mm |
| Protection rating (IP): | IP40 |
| Protection class: | II |
| Luminaire with limited surface temperature 'D-mark': | no |
| Nominal voltage: | 220 to 240 V |
| Housing color: | white |
| Housing material: | aluminum |
| Color temperature: | 3000 K |
| Impact resistance: | IK02 |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Rated service life L80/B10 at 25 °C: | 50000 h |
| Suitable for wall mounting: | yes |
| Energy efficiency class of the built-in lamp: | A++, A+, A (LED) |
| Voltage type: | AC |
| With motion detector: | no |
| Beam angle: | extremely wide beam>80° |
| With light source: | yes |
| Light source: | LED not replaceable |
| With control gear: | yes |
| Rated service life L70/B10 at 25 °C: | 50000 h |
| Cover material: | Opal plastic |
| Light distributor: | Diffuser lens/optics/panel |
| Installation height/depth: | 50.0 mm |
| Without dimming function: | yes |
| Installation width: | 580.0 mm |
| Light emission: | direct |
| With light sensor: | no |
| Operating device: | EVG |
| Suitable for recessed mounting: | yes |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| Suitable for light strip configuration: | no |
| Suitable for pendant suspension: | yes |
| Suitable for surface mounting: | no |
| Suitable for emergency lighting: | yes |
| Installation length: | 580.0 mm |
| Design of the grid: | other |
| Covering of the luminaire with thermal insulation material possible: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming potentiometer (integrated in the device): | no |
| LED nominal current at constant current: | 170 mA |
| Dimming 0-10 V: | no |
| Dimming GPRS: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming Trailing edge phase control: | no |
| Dimming leading edge phase control: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming dependent on operating device: | no |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Rated service life L80/B50 at 25 °C: | 50000 h |
| Rated service life L90/B10 at 25 °C: | 30000 h |
| Rated service life L90/B50 at 25 °C: | 50000 h |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Luminaire luminous efficacy: | 100 lm/W |
| Power factor: | 0.90 |
| Type of Wiring: | Termination |
| Number of poles: | 2 |
