LEDVANCE Osram 4058075440050 PL PFM 1200 33W/3000K LED recessed light

LEDVANCE Osram 4058075440050 PL PFM 1200 33W/3000K LED recessed light

In stock

SKU: 732147

Price on request

€101.50

€0

Overview

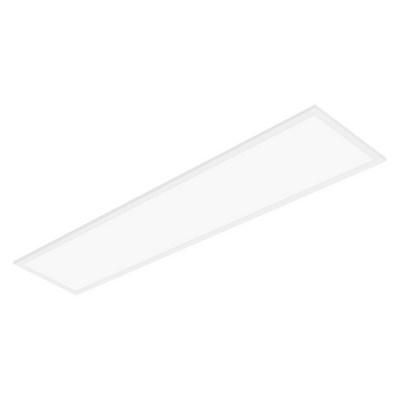

Rectangular insert luminaire, tool-free installation for 1200 x 300 mm ceiling systems. Product features: Frame made of extruded aluminum. Polystyrene diffuser. 3-pin connection terminal, cable cross-section up to 3 x 2.5 mm². 5-pin connection terminal, cable cross-section up to 5 x 2.5 mm² (DALI versions). Luminaire versions with IoT-capable DALI-2 driver available. Versions with CRI 90 available. Service life (L80/B10): up to 60,000 h (at 25 °C). Product advantages: Tool-free electrical connection thanks to push-button connection terminal. Through-wiring possible with included connection box. Energy savings thanks to high system light output: up to 120 lm/W. Advanced services such as power consumption monitoring and remote maintenance possible with DALI versions. Comfortable light and high color consistency. External driver for increased flexibility and easy installation. Low-flicker light thanks to special electronic ballast. Emergency lighting possible with LEDVANCE Emergency Conversion Box. 5-year guarantee. Areas of application: Direct replacement for luminaires with fluorescent lamps. Office rooms, conference rooms. Reception areas, entrance areas, corridors, elevators. Suitable for ceiling recessed systems with a grid size of 300 x 1200 mm. Technical equipment: Accessories available for various installation options. Connection box with 3-pin connection terminal included. Safety cable for luminaires included. Safety clamps included. External ballast included

Property	Value
Max. System power:	33.00 W
Rated luminous flux according to IEC 62722-2-1:	4000 lm
Length:	1195 mm
Width:	295.0 mm
Height/depth:	9.0 mm
Protection class (IP):	IP40
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK03
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	60000 h
Suitable for wall mounting:	yes
Energy efficiency class of the built-in lamp:	A++, A+, A (LED)
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam>80°
With light source:	yes
Light source:	LED not replaceable
With control gear:	yes
Rated service life L70/B10 at 25 °C:	100000 h
Cover material:	Opal plastic
Light distributor:	Diffuser lens/optics/panel
Installation height/depth:	50.0 mm
Without dimming function:	yes
Installation width:	290.0 mm
Light emission:	direct
With light sensor:	no
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for Pendant suspension:	yes
Suitable for surface mounting:	no
Suitable for emergency lighting:	yes
Installation length:	1190.0 mm
Design of the grid:	matt
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Dimming potentiometer (integrated in the device):	no
LED nominal current at constant current:	170 mA
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine wave reduction dimming:	no
Touch and dim dimming:	no
Zigbee dimming:	no
Push button dimming:	no
Dimming dependent on operating device:	no
Rated service life L70/B50 at 25 °C:	100000 h
Rated service life L80/B50 at 25 °C:	60000 h
Rated service life L90/B10 at 25 °C:	35000 h
Rated service life L90/B50 at 25 °C:	35000 h
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Luminaire luminous efficacy:	120 lm/W
Power factor:	0.93
Type of wiring:	suitable for Through wiring
Number of poles:	2

Characteristics

Energy efficiency class of the permanently installed light sourceA++, A+, A (LED)

Rated service life L90/B10 at 25 °C35000 h

Rated service life L70/B10 at 25 °C100000 h

Rated service life L80/B50 at 25 °C60000 h

HABPL PFM 1200 33W/3000K

Manufacturer

HAN4058075440050

GTIN4058075440050

Covering the luminaire with thermal insulation material possibleNo

Type of wiringSuitable for through wiring

Execution of the gridFrosted

Rated lifetime L70/B50 at 25 °C100000 hours

Rated lifetime L80/B10 at 25 °C60000 hours

Rated luminous flux according to IEC 62722-2-14000lm

Suitable for computer workstations according to EN 12464-1No

Width295.0 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width290.0 mm

Installation height/depth50.0 mm

Installation length1190.0 mm

Color temperature

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingYes

Suitable for pendulum suspensionYes

Suitable for wall mountingYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth9.0 mm

LED nominal current at constant current170mA

Power factor0.93

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy120lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Length1195 mm

Max. system performance33.00W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage

Without dimming functionYes

Number of poles2

Impact resistanceIK03

IP protection)IP40

Protection classII

Voltage type

Cover materialPlastic opal

Housing materialAluminum
