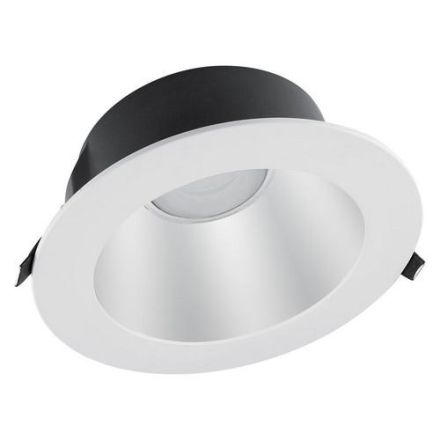

LEDVANCE Osram 4058075459151 DL UGR19 DN155 PFM 14W/840 WT IP54 LED recessed ceiling spotlight

LEDVANCE Osram 4058075459151 DL UGR19 DN155 PFM 14W/840 WT IP54 LED recessed ceiling spotlight

In stock

SKU: 732488

Price on request

€77.92

€0

Overview

Low-glare downlights, suitable for computer workstations. Product features: Housing material: aluminum with high-gloss reflector. Protection class: IP54 (room side) / IP20 (rear). Connection box with plug-in terminal for tool-free connection. Through-wiring possible. Luminaire versions with IoT-capable DALI-2 driver or Zigbee 3.0 technology available. Product advantages: Good glare control (UGR < 19) and cut-off angle up to 30° for comfortable interior lighting. Simple and quick installation thanks to a connection box with 5-pin, tool-free connection terminal. Low-flicker light. Suitable for use in dusty and damp environments thanks to high protection class. 5-year guarantee. Areas of application: Suitable for office applications, especially computer workstations. Direct replacement for luminaires with compact fluorescent lamps. Corridors / hallways. Bathrooms, kitchens and covered outdoor areas. General lighting. Technical equipment: External ballast included.

Property	Value
Max. System power:	14.00 W
Rated luminous flux according to IEC 62722-2-1:	1600 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP54
Outer diameter:	180.00 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
Installation height/depth:	100 mm
With operating device:	yes
Suitable for recessed mounting:	yes
Length:	180.00 mm
Width:	180.00 mm
Height/depth:	65.00 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Beam angle:	wide beam 41-80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	high-gloss
Installation width:	155.0 mm
Installation length:	155.0 mm
Luminous flux:	1600 lm
Cover material:	opal plastic
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for Pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	diffuser lens/optics/panel
Light emission:	direct
Rated service life L70/B50 at 25 °C:	70000 h
Rated ambient temperature according to IEC62722-2-1:	-20 to 45 °C
Type of wiring:	suitable for through wiring
Power factor:	0.90
Number of poles:	2
Connection type:	Plug-in terminal
Luminous efficacy:	115 lm/W
Suitable for computer workstations according to EN 12464-1:	yes
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Colour consistency (McAdam ellipse):	SDCM5

Characteristics

HABDL UGR19 DN155 PFM 14W/840 WT IP54

Manufacturer

HAN4058075459151

GTIN4058075459151

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Beam angleWide beam 41-80°

Outer diameter180.00 mm

Rated lifetime L70/B50 at 25 °C70000 hours

Rated luminous flux according to IEC 62722-2-11600lm

Rated ambient temperature according to IEC62722-2-1-20 to 45 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width180.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width155.0 mm

Installation height/depth100 mm

Installation length155.0 mm

Color consistency (McAdam ellipse)SDCM5

Color temperature

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth65.00 mm

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy115lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1600lm

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length180.00 mm

Max. system performance14.00 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles2

ReflectorHigh gloss

Impact resistanceIK03

IP protection)IP54

Protection classII

Voltage type

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialAluminum
