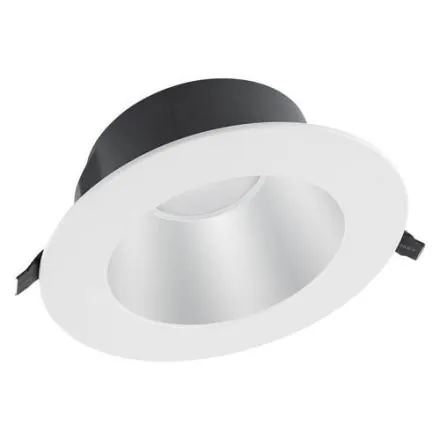

Low-glare downlights, suitable for computer workstations. Product features: Housing material: aluminum with high-gloss reflector. Protection class: IP54 (room side) / IP20 (rear). Connection box with plug-in terminal for tool-free connection. Through-wiring possible. Luminaire versions with IoT-capable DALI-2 driver or Zigbee 3.0 technology available. Product advantages: Good glare control (UGR < 19) and cut-off angle up to 30° for comfortable interior lighting. Simple and quick installation thanks to a connection box with 5-pin, tool-free connection terminal. Low-flicker light. Suitable for use in dusty and damp environments thanks to high protection class. 5-year guarantee. Areas of application: Suitable for office applications, especially computer workstations. Direct replacement for luminaires with compact fluorescent lamps. Corridors / hallways. Bathrooms, kitchens and covered outdoor areas. General lighting. Technical equipment: External ballast included.
| Property | Value |
| Max. System power: | 21.00 W |
| Rated luminous flux according to IEC 62722-2-1: | 2400 lm |
| Housing color: | white |
| Housing material: | aluminum |
| Protection class (IP): | IP54 |
| Outer diameter: | 220.00 mm |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| Installation height/depth: | 120 mm |
| With operating device: | yes |
| Suitable for recessed mounting: | yes |
| Length: | 220.00 mm |
| Width: | 220.00 mm |
| Height/depth: | 82.00 mm |
| With motion detector: | no |
| Color temperature: | 3000 K |
| Nominal voltage: | 220 to 240 V |
| Beam angle: | wide beam 41-80° |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Impact resistance: | IK03 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Reflector: | high-gloss |
| Installation width: | 195.0 mm |
| Installation length: | 195.0 mm |
| Luminous flux: | 2400 lm |
| Cover material: | opal plastic |
| Covering of the luminaire with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for Pendulum suspension: | no |
| Suitable for platform/floor mounting: | no |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for cable system: | no |
| Surface: | powder-coated |
| Brushed surface: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | diffuser lens/optics/panel |
| Light emission: | direct |
| Rated service life L70/B50 at 25 °C: | 70000 h |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 45 °C |
| Type of wiring: | suitable for through wiring |
| Power factor: | 0.90 |
| Number of poles: | 2 |
| Connection type: | Plug-in terminal |
| Luminous efficacy: | 115 lm/W |
| Suitable for computer workstations according to EN 12464-1: | yes |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Photobiological safety according to EN 62471: | RG1 |
| Colour consistency (McAdam ellipse): | SDCM5 |
