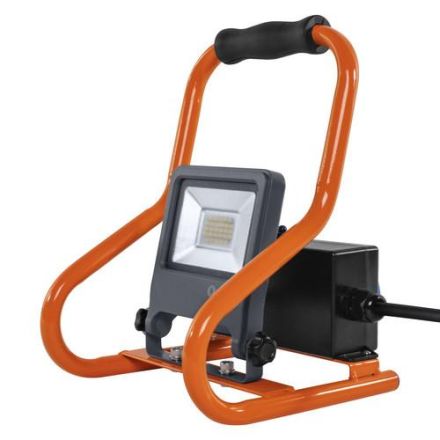

LEDVANCE Osram 4058075321304 LED WORKLIGHT 20W 840 R-STANDSOCKET LED spotlight

LEDVANCE Osram 4058075321304 LED WORKLIGHT 20W 840 R-STANDSOCKET LED spotlight

In stock

SKU: 842776

Price on request

€51.99

€0

Overview

Flexible, portable work light with built-in sockets. Product features: Equipped with two sockets, for up to 3000 W connected load. Socket protected by a self-closing cover. Built-in switch for controlling the light, sockets remain permanently supplied. Quick release for adjusting the angle of the light head. 3 m cable with type E/F plug. Product advantages: 2 in 1, work light and multiple socket. Energy savings of up to 80% compared to halogen lamp work lights. Partially frosted cover made of tempered glass for uniform lighting. Areas of application: Outdoor use (IP44). Renovation. Garages. Basements. Workshops.

Property	Value
Max. System power:	20.00 W
Rated luminous flux according to IEC 62722-2-1:	1700 lm
Housing material:	Aluminum
Protection rating (IP):	IP44
Protection class:	I
With light source:	yes
With control gear:	yes
Suitable for recessed mounting:	no
Length:	227.00 mm
Width:	224.00 mm
Height/Depth:	278.00 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Operating device:	EVG
Impact resistance:	IK06
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Luminous flux:	1700 lm
Covering of the lamp with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	yes
Suitable for Traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for cable system:	no
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light emission:	direct
Rated service life L70/B50 at 25 °C:	25000 h
Rated ambient temperature according to IEC62722-2-1:	-20 to 45 °C
Type of wiring:	Termination
Power factor:	0.90
Number of poles:	3
Luminous efficacy:	85 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Photobiological safety according to EN 62471:	RG1

Characteristics

HABLED WORKLIGHT 20W 840 R-STANDSOCKET

Manufacturer

HAN4058075321304

GTIN4058075321304

Covering the luminaire with thermal insulation material possibleNo

Type of wiringDiploma

Rated lifetime L70/B50 at 25 °C25000 hours

Rated luminous flux according to IEC 62722-2-11700lm

Rated ambient temperature according to IEC62722-2-1-20 to 45 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width224.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

Suitable for surface mountingNo

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Height/Depth278.00 mm

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy85lm/W

Light emissionDirect

Light colorWhite

Luminous flux1700lm

Length227.00 mm

Max. system performance20.00 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles3

ReflectorWithout

Impact resistanceIK06

IP protection)IP44

Protection classI

Voltage type

Housing materialAluminum
