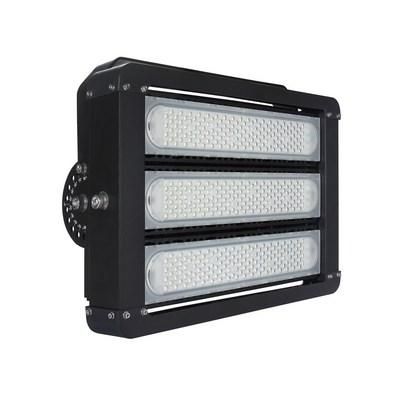

LEDVANCE Osram 4058075372450 ECOHPFLOOD 300W 840 N41100LM BKVS1 LED spotlight

LEDVANCE Osram 4058075372450 ECOHPFLOOD 300W 840 N41100LM BKVS1 LED spotlight

In stock

SKU: 732598

Price on request

€644.55

€0

Overview

Floodlight with rotationally symmetrical light distribution for high mast heights. Product features: Rotationally symmetrical light distribution for high installation heights. Various versions with different light distribution available. Mounting bracket with rotation range of up to 180°. Pre-installed, flexible cable (H05RN-F) with 1 m length, 3 x 1.0 mm² crimped. Product advantages: Energy savings of up to 90% compared to halogen lamp floodlights. Up to 45% energy savings compared to luminaires that use conventional discharge lamps. Homogeneous light emission. 5-year guarantee. Areas of application: Direct replacement for luminaires that use HID lamps. Sports facilities. Industry. Lighting of large areas.

Property	Value
Max. System power:	300.00 W
Rated luminous flux according to IEC 62722-2-1:	41100 lm
Housing color:	black
Housing material:	aluminum
Protection class (IP):	IP65
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	522.00 mm
Width:	370.00 mm
Height/depth:	152.00 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	100 to 240 V
Beam angle:	wide beam 41-80°
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Light distribution:	symmetrical
Operating device:	EVG
Impact resistance:	IK08
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	without
Luminous flux:	41100 lm
Cover material:	opal plastic
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for Cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with Push button:	no
Without dimming function:	yes
Light distributor:	Focus lens
Light emission:	direct
Rated service life L70/B50 at 25 °C:	50000 h
Rated ambient temperature according to IEC62722-2-1:	-40 to 45 °C
Type of wiring:	Termination
Power factor:	0.95
Number of poles:	3
Connection type:	Plug-in terminal
Luminous efficacy:	137 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG1

Characteristics

HABECOHPFLOOD 300W 840 N41100LM BKVS1

Manufacturer

HAN4058075372450

GTIN4058075372450

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Beam angleWide beam 41-80°

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-141100lm

Rated ambient temperature according to IEC62722-2-1-40 to 45 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width370.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorBlack

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth152.00 mm

Power factor0.95

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy137lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux41100lm

Light distributorFocus lens

Light distributionSymmetrical

Length522.00 mm

Max. system performance300.00W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles3

ReflectorWithout

Impact resistanceIK08

IP protection)IP65

Protection classI

Voltage type

AdjustabilitySwiveling

Cover materialPlastic opal

Housing materialAluminum
