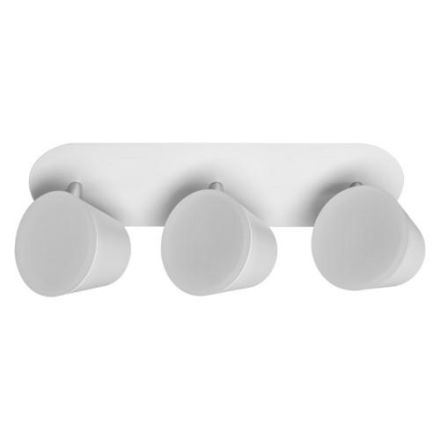

LEDVANCE Osram 4058075399594 LED SPOT 3X7W IP44 930-940CLICK-CCT LED spotlight

LEDVANCE Osram 4058075399594 LED SPOT 3X7W IP44 930-940CLICK-CCT LED spotlight

In stock

SKU: 842768

Price on request

€56.24

€0

Overview

Lights with two adjustable color temperatures via wall switch. Product features: Adjustable light heads. Color temperature can be selected via wall switch (3000 K, 4000 K). Protection class: IP44. Product advantages: Light control can be individually adjusted. Simple and quick installation. Areas of application: Wall and ceiling mounting. Bathroom (IP44). Indoor applications. Technical equipment: Complete assembly and connection accessories included

Property	Value
Max. System power:	20.00 W
Rated luminous flux according to IEC 62722-2-1:	1000 lm
Length:	350.00 mm
Width:	100.00 mm
Height/depth:	150.00 mm
Protection rating (IP):	IP44
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	220 to 240 V
Housing color:	white
Housing material:	aluminum
Color temperature:	3000 K
Impact resistance:	IK03
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	yes
Voltage type:	AC
With motion detector:	no
With light source:	yes
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	Opal plastic
Without dimming function:	yes
With light sensor:	no
Operating device:	EVG
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Grid finish:	matt
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Rated service life L70/B50 at 25 °C:	30000 h
Luminaire luminous efficacy:	50 lm/W
Power factor:	0.5
Wiring type:	Termination
Number of poles:	2

Characteristics

HABLED SPOT 3X7W IP44 930-940CLICK-CCT

Manufacturer

HAN4058075399594

GTIN4058075399594

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridFrosted

Rated lifetime L70/B50 at 25 °C30000 hours

Rated luminous flux according to IEC 62722-2-11000lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width100.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature

Color rendering index CRI90-100

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Housing colorWhite

Height/Depth150.00 mm

Power factor0.5

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy50lm/W

Light colorWhite

Length350.00 mm

Max. system performance20.00 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage

Without dimming functionYes

Number of poles2

Impact resistanceIK03

IP protection)IP44

Protection classII

Voltage type

Cover materialPlastic opal

Housing materialAluminum

LEDVANCE Osram 4058075399594 LED SPOT 3X7W IP44 930-940CLICK-CCT LED spotlight

Price on request

€56.24

€0

Into a basketIn the basketGo
