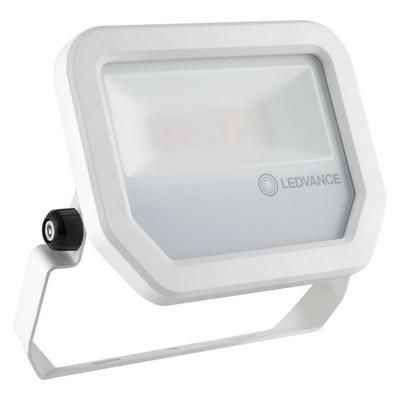

LEDVANCE Osram 4058075421035 FL PFM 20W/4000K SYM 100 WT LED spotlight

LEDVANCE Osram 4058075421035 FL PFM 20W/4000K SYM 100 WT LED spotlight

In stock

SKU: 732164

Price on request

€17.79

€0

Overview

Versatile floodlights with up to 2400 lm luminous flux. Product features: Reflector-based, symmetrical light distribution with 100° x 100° beam angle. Integrated ballast with a wide input voltage range, suitable for 100 - 277 VAC. Surge protection: up to 4 kV (L/N-PE), 2 kV (LN). Mounting bracket with 30° angle and large rotation range. Pre-installed, flexible cable (H05RN-F) with 1 m length, 3 x 1.0 mm² crimped. Product advantages: Bright, robust and durable. Safe and very even illumination thanks to opal, hardened glass diffuser. No light leakage in the upper half space (ULOR 0%) at 0° inclination. Energy savings of up to 90% compared to halogen lamp floodlights. 5 year guarantee. Areas of application: Replacement for floodlights with halogen lamps. Outdoor use (IP65). Public spaces. Illumination of facades. Construction sites. Gardens, balconies and other outdoor areas.

Property	Value
Max. System power:	20.00 W
Rated luminous flux according to IEC 62722-2-1:	2400 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP65
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With operating device:	yes
Suitable for recessed mounting:	no
Length:	144.00 mm
Width:	156.00 mm
Height/depth:	42.00 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	100 to 277 V
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	no
Light distribution:	symmetrical
Operating device:	EVG
Impact resistance:	IK07
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	matt
Luminous flux:	2400 lm
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for platform/floor mounting:	yes
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface:	powder-coated
Surface brushed:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming Potentiometer (device-integrated):	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming Mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Rated service life L70/B50 at 25 °C:	70000 h
Rated ambient temperature according to IEC62722-2-1:	-30 to 50 °C
Type of wiring:	Termination
Power factor:	0.90
Number of poles:	3
Connection type:	Plug-in terminal
Luminaire luminous efficacy:	120 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Colour consistency (McAdam ellipse):	SDCM5

Characteristics

HABFL PFM 20W/4000K SYM 100 WT

Manufacturer

HAN4058075421035

GTIN4058075421035

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringDiploma

Rated lifetime L70/B50 at 25 °C70000 hours

Rated luminous flux according to IEC 62722-2-12400lm

Rated ambient temperature according to IEC62722-2-1-30 to 50 °C

Operating deviceElectronic ballast

Suitable for computer workstations according to EN 12464-1No

Width156.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM5

Color temperature

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingYes

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth42.00 mm

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy120lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2400lm

Light distributorReflector

Light distributionSymmetrical

Length144.00 mm

Max. system performance20.00 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles3

ReflectorFrosted

Impact resistanceIK07

IP protection)IP65

Protection classI

Voltage type

AdjustabilitySwiveling

Housing materialAluminum
