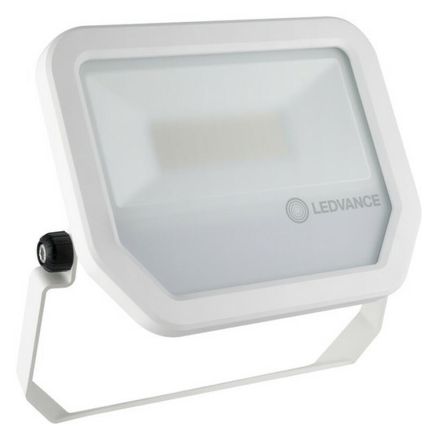

LEDVANCE Osram 4058075421202 FL PFM 30W/6500K SYM 100 WT LED spotlight

LEDVANCE Osram 4058075421202 FL PFM 30W/6500K SYM 100 WT LED spotlight

In stock

SKU: 1062328

Price on request

€28.87

€0

Overview

Versatile floodlights with up to 3600 lm luminous flux. Product features: Reflector-based, symmetrical light distribution with 100° x 100° beam angle. Integrated ballast with a wide input voltage range, suitable for 100 - 277 VAC. Surge protection: up to 4 kV (L/N-PE), 2 kV (LN). Mounting bracket with 30° angle and large rotation range. Pre-installed, flexible cable (H05RN-F) with 1 m length, 3 x 1.0 mm crimped. Product advantages: Bright, robust and durable. Safe and very uniform illumination thanks to opal, tempered glass diffuser. No light leakage in the upper half space (ULOR 0%) at 0° inclination. Energy savings of up to 90% compared to halogen lamp floodlights. 5 year guarantee. Areas of application: Replacement for floodlights with halogen lamps. Outdoor use (IP65). Public space. Illumination of facades. Construction sites. Gardens, balconies and other outdoor areas.

Property	Value
BEG funding program:	Yes
Rated luminous flux according to IEC 62722-2-1:	3600 lm
Color temperature:	6500 K
Color rendering index CRI:	80-89
Color consistency (McAdam ellipse):	SDCM5
Protection class (IP):	IP65
Impact resistance:	IK07
Protection class:	I
Rated ambient temperature according to IEC62722-2-1:	-30 - 50 °C
Length:	1000 mm
Width:	186.00 mm
Height/depth:	42.00 mm
Voltage type:	AC
Nominal voltage:	100 - 277 V
Max. System power:	30.00 W
Luminaire luminous efficacy:	120 lm/W
With control gear:	yes
Control gear:	EVG
Connection type:	Plug terminal
Number of poles:	3
Type of wiring:	Terminal
With light source:	yes
Light source:	LED not replaceable
Light emission:	direct
Light distribution:	symmetrical
Light distributor:	reflector
Housing color:	white
Housing material:	aluminum
Suitable for surface mounting:	yes
Photobiological safety according to EN 62471:	RG1
Weight:	0.7
Weight unit:	KG
Luminous flux:	3600 lm
Wall mounting:	yes
Reflector:	matt
Surface:	powder-coated
Adjustability:	swivelling
Suitable for pedestal/floor mounting:	yes
Rated service life L70/B50 at 25 °C:	70000 h
Without dimming function:	yes
Max. number of luminaires circuit breaker C16:	74
Max. Number of lights circuit breaker B16:	64
Socket:	without
Short description:	FLOODLIGHT 30 W 6500 K SYM 100 WT

Characteristics

Wall mountingYes

HABFL PFM 30W/6500K SYM 100 WT

Manufacturer

HAN4058075421202

GTIN4058075421202

Connection typePlug-in terminal

Type of wiringDiploma

Rated lifetime L70/B50 at 25 °C70000 hours

Rated luminous flux according to IEC 62722-2-13600lm

Rated ambient temperature according to IEC62722-2-1-30 - 50 °C

Operating deviceElectronic ballast

Width186.00 mm

Color consistency (McAdam ellipse)SDCM5

Color temperature

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingYes

Suitable for podium/floor mountingYes

Housing colorWhite

Weight0,7

Weight unit kg

Height/Depth42.00 mm

Short descriptionFLOODLIGHT 30W 6500K SYM 100WT

Luminaire luminous efficacy120lm/W

LampsLED not replaceable

Light emissionDirect

Luminous flux3600lm

Light distributorReflector

Light distributionSymmetrical

Length1000 mm

Max. number of luminaires Circuit breaker B1664

Max. number of luminaires Circuit breaker C1674

Max. system performance30.00W

With operating deviceYes

With light sourceYes

Nominal voltage

SurfacePowder coated

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles3

ReflectorFrosted

Impact resistanceIK07

IP protection)IP65

Protection classI

Voltage type

AdjustabilitySwiveling

Housing materialAluminum
