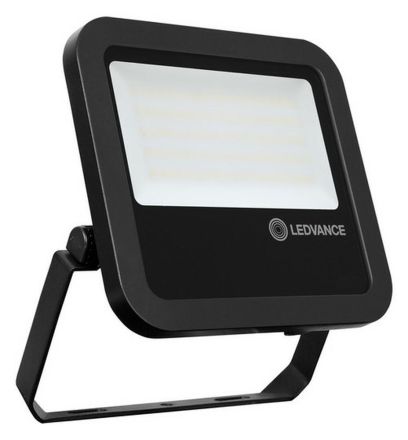

LEDVANCE Osram 4058075422469 FL PFM 65W/4000K SYM 100 BK LED spotlight

In stock
SKU: 1062335
€99.98
Into a basketIn the basketGo

Overview

Versatile floodlights with up to 8000 lm luminous flux. Product features: Reflector-based, symmetrical light distribution with 100° x 100° beam angle. Integrated ballast with a wide input voltage range, suitable for 100 - 277 VAC. Overvoltage protection: up to 6 kV (L/N-PE), 4 kV (LN). Mounting bracket with 30° angle and large rotation range. Climate membrane for optimized air exchange, with a consistently high IP protection rating. Pre-installed, flexible cable (H05RN-F) with a length of 1 m, 3 x 1.0 mm crimped. Product advantages: Bright, robust and durable. Safe and very uniform illumination thanks to the opal, hardened glass diffuser. No light leakage in the upper half space (ULOR 0%) at 0° inclination. Energy savings of up to 90% compared to halogen lamp floodlights. 5 year guarantee. Areas of application: Replacement for floodlights with halogen lamps. Outdoor use (IP65). Industry. Public spaces. Construction sites. Illumination of facades.

PropertyValue
BEG funding program:Yes
Rated luminous flux according to IEC 62722-2-1:8000 lm
Color temperature:4000 K
Color rendering index CRI:80-89
Color consistency (McAdam ellipse):SDCM5
Protection class (IP):IP65
Impact resistance:IK08
Protection class:I
Rated ambient temperature according to IEC62722-2-1:-30 - 50 °C
Length:1000 mm
Width:237.00 mm
Height/depth:49.00 mm
Voltage type:AC
Nominal voltage:100 - 277 V
Max. System power:65.00 W
Luminaire luminous efficacy:123 lm/W
With control gear:yes
Control gear:EVG
Connection type:Plug terminal
Number of poles:3
Type of wiring:Terminal
With light source:yes
Light source:LED not replaceable
Light emission:direct
Light distribution:symmetrical
Light distributor:reflector
Housing color:black
Housing material:aluminum
Suitable for surface mounting:yes
Photobiological safety according to EN 62471:RG1
Weight:2.1
Weight unit:KG
Luminous flux:8000 lm
Wall mounting:yes
Reflector:matt
Surface:powder-coated
Adjustability:swivelling
Suitable for pedestal/floor mounting:yes
Rated service life L70/B50 at 25 °C:70000 h
Without dimming function:yes
Max. number of luminaires circuit breaker C16:33
Max. Number of lights circuit breaker B16:29
Socket:without
Short description:FLOODLIGHT 65 W 4000 K SYM 100 BK

Characteristics

Wall mountingYes
HABFL PFM 65W/4000K SYM 100 BK
ManufacturerLEDVANCE Osram
HAN4058075422469
GTIN4058075422469
Connection typePlug-in terminal
Type of wiringDiploma
Rated lifetime L70/B50 at 25 °C70000 hours
Rated luminous flux according to IEC 62722-2-18000lm
Rated ambient temperature according to IEC62722-2-1-30 - 50 °C
Operating deviceElectronic ballast
Width237.00 mm
Color consistency (McAdam ellipse)SDCM5
Color temperature4000K
Color rendering index CRI80-89
VersionWithout
Suitable for surface mountingYes
Suitable for podium/floor mountingYes
Housing colorBlack
Weight2,1
Weight unit kg
Height/Depth49.00 mm
Short descriptionFLOODLIGHT 65W 4000K SYM 100 BK
Luminaire luminous efficacy123lm/W
LampsLED not replaceable
Light emissionDirect
Luminous flux8000lm
Light distributorReflector
Light distributionSymmetrical
Length1000 mm
Max. number of luminaires Circuit breaker B1629
Max. number of luminaires Circuit breaker C1633
Max. system performance65.00W
With operating deviceYes
With light sourceYes
Nominal voltage100 - 277V
SurfacePowder coated
Without dimming functionYes
Photobiological safety according to EN 62471RG1
Number of poles3
ReflectorFrosted
Impact resistanceIK08
IP protection)IP65
Protection classI
Voltage typeAC
AdjustabilitySwiveling
Housing materialAluminum
