LEDVANCE Osram 4058075461055 FL PFM 50W/4000K SYM 100 S WT 8X1 LED spotlight

In stock
SKU: 1062332
€63.87
Into a basketIn the basketGo

Overview

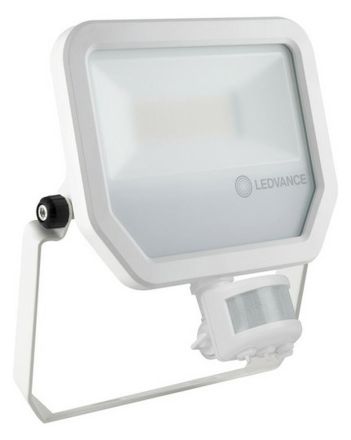

Floodlight with flexible motion and daylight sensor, up to 6000 lm luminous flux. Product features: Flexible motion and daylight sensor. Sensor can be swiveled 350° and tilted 180°. Reflector-based, symmetrical light distribution with 100° x 100° beam angle. Integrated ballast with large input voltage range, suitable for 100 - 277 V AC. Overvoltage protection: up to 4 kV (L/N-PE), 2 kV (LN). Mounting bracket with 30° angle and large rotation range. Climate membrane for optimized air exchange, with a consistently high IP protection rating. Pre-installed, flexible cable (H05RN-F) with a length of 1 m, 3 x 1.0 mm crimped. Product advantages: Bright, robust and durable. Lighting optimized for needs thanks to flexible, programmable sensor. Easy adjustment of the sensor range, daylight detection and lighting duration. Continuous operation possible, activation using a special switch-on scheme. Safe and very even illumination thanks to the opal, hardened glass diffuser. No light leakage in the upper half space (ULOR 0%) at 0° inclination. Energy savings of up to 90% compared to halogen lamp floodlights. 5-year guarantee. Areas of application: Replacement for floodlights with halogen lamps. Outdoor use (IP65). Public spaces. Illumination of facades. Construction sites. Gardens, balconies and other outdoor areas.

PropertyValue
BEG funding program:Yes
Rated luminous flux according to IEC 62722-2-1:6000 lm
Color temperature:4000 K
Color rendering index CRI:80-89
Color consistency (McAdam ellipse):SDCM5
Protection class (IP):IP65
Impact resistance:IK07
Protection class:I
Rated ambient temperature according to IEC62722-2-1:-30 - 50 °C
Length:1000 mm
Width:219.00 mm
Height/depth:59.00 mm
Voltage type:AC
Nominal voltage:100 - 277 V
Max. System power:50.00 W
Luminaire luminous efficacy:120 lm/W
With control gear:yes
Control gear:EVG
Connection type:Plug terminal
Number of poles:3
Type of wiring:Terminal
With light source:yes
Light source:LED not replaceable
Light emission:direct
Light distribution:symmetrical
Light distributor:reflector
Housing colour:white
Housing material:aluminium
Suitable for surface mounting:yes
Photobiological safety according to EN 62471:RG1
Weight:1.06
Weight unit:KG
Luminous flux:6000 lm
With Motion detector:yes
Wall mounting:yes
Reflector:matt
Surface:powder-coated
With light sensor:yes
Adjustability:swivelling
Rated service life L70/B50 at 25 °C:70,000 h
Without dimming function:yes
Max. number of lights, circuit breaker C16:41
Max. Number of lights circuit breaker B16:35
Socket:without
Short description:FLOODLIGHT SENSOR 50 W 4000 K SYM 100 S WT

Characteristics

Wall mountingYes
HABFL PFM 50W/4000K SYM 100 S WT 8X1
ManufacturerLEDVANCE Osram
HAN4058075461055
GTIN4058075461055
Connection typePlug-in terminal
Type of wiringDiploma
Rated lifetime L70/B50 at 25 °C70000 hours
Rated luminous flux according to IEC 62722-2-16000lm
Rated ambient temperature according to IEC62722-2-1-30 - 50 °C
Operating deviceElectronic ballast
Width219.00 mm
Color consistency (McAdam ellipse)SDCM5
Color temperature4000K
Color rendering index CRI80-89
VersionWithout
Suitable for surface mountingYes
Housing colorWhite
Weight1,06
Weight unit kg
Height/Depth59.00 mm
Short descriptionFLOODLIGHT SENSOR 50W 4000K SYM 100S WT
Luminaire luminous efficacy120lm/W
LampsLED not replaceable
Light emissionDirect
Luminous flux6000lm
Light distributorReflector
Light distributionSymmetrical
Length1000 mm
Max. number of luminaires Circuit breaker B1635
Max. number of luminaires Circuit breaker C1641
Max. system performance50.00W
With operating deviceYes
With motion detectorYes
With light sourceYes
With light sensorYes
Nominal voltage100 - 277V
SurfacePowder coated
Without dimming functionYes
Photobiological safety according to EN 62471RG1
Number of poles3
ReflectorFrosted
Impact resistanceIK07
IP protection)IP65
Protection classI
Voltage typeAC
AdjustabilitySwiveling
Housing materialAluminum
